Compute Sessions#

The most visited pages in the Backend.AI WebUI would be the 'Sessions' and 'Data' pages. This document will cover how to query and create container-based compute sessions and utilize various web applications on the 'Sessions' page.

Start a new session#

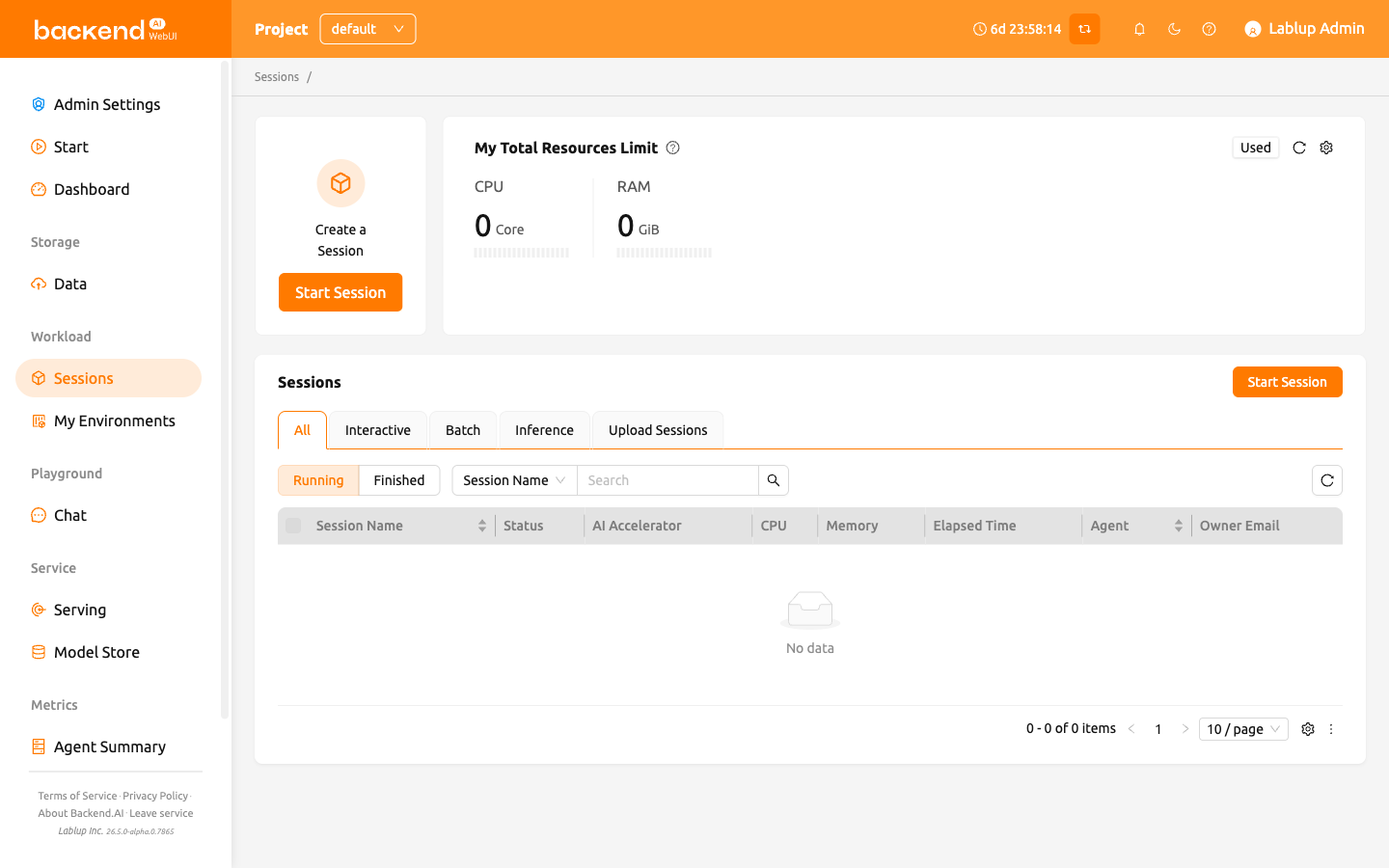

After logging in with a user account, click 'Sessions' on the left sidebar. 'Sessions' page lets you start new sessions or use and manage existing running sessions.

Click the 'START' button to start a new compute session.

Session Type#

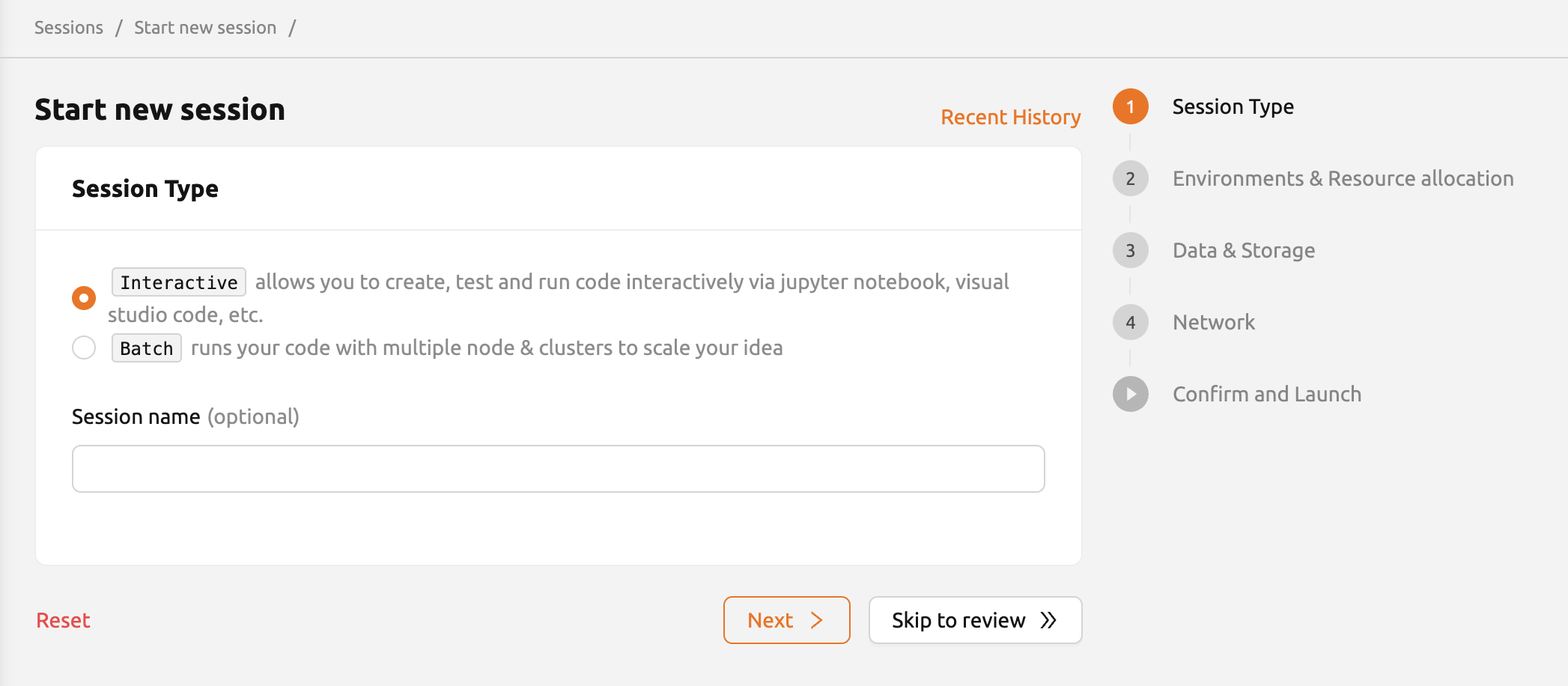

In the first page, users can select the type of session, 'interactive' or 'batch'. If needed, setting the name of the session (optional) is also available.

• Session type: Determines the type of the session. There are two different types of session, "Interactive" and "Batch". The following are the primary distinctions between the two types:

  • Interactive compute session

    • This is the type which has been supported from the initial version of the Backend.AI.
    • The compute session is used in a way that the user interacts with after creating a session without specifying a pre-defined execution script or command.
    • The session is not terminated automatically unless user explicitly destroys the session or session garbage collectors are set by the admin.

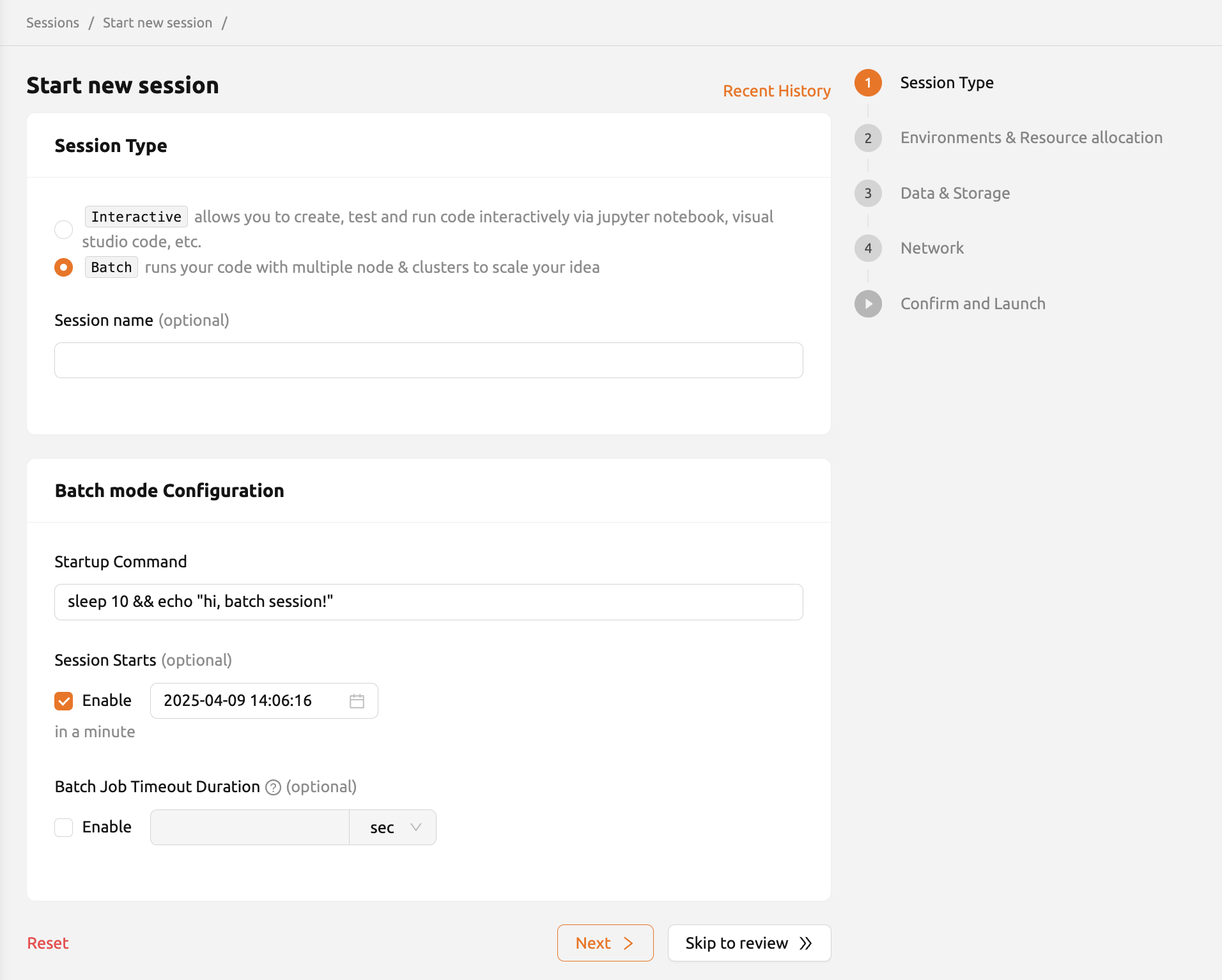

  • Batch compute session

    • This type of session is supported via GUI from Backend.AI 22.03 (CLI has supported the batch-type session before the 22.03).
    • Pre-define the script that will be executed when a compute session is ready.
    • This session will execute the script as soon as the compute session is ready, and then automatically terminates the session as soon as the execution finishes. It will utilize the server farm's resources efficiently and flexibly if a user can write the execution script in advance or is building a pipeline of workloads.
    • Users can set the start time of a batch-type compute session. However, keep in mind that this feature does not guarantee that the session will start at the registered time. It may still stay at 'PENDING' due to the lack of resources, etc. Rather, it guarantees that the session WILL NOT run until the start time.
    • Users can also set the 'Timeout Duration' of a batch-type compute session. When users set the timeout duration, The session will automatically terminate if the specified time is exceeded.



• Session name: Users can specify the name of the compute session to be created. If set, this name appears in Session Info, so it is distinguishable among multiple compute sessions. If not specified, random word will be assigned automatically. Session names only accept alphanumeric characters between 4 and 64 without spaces.

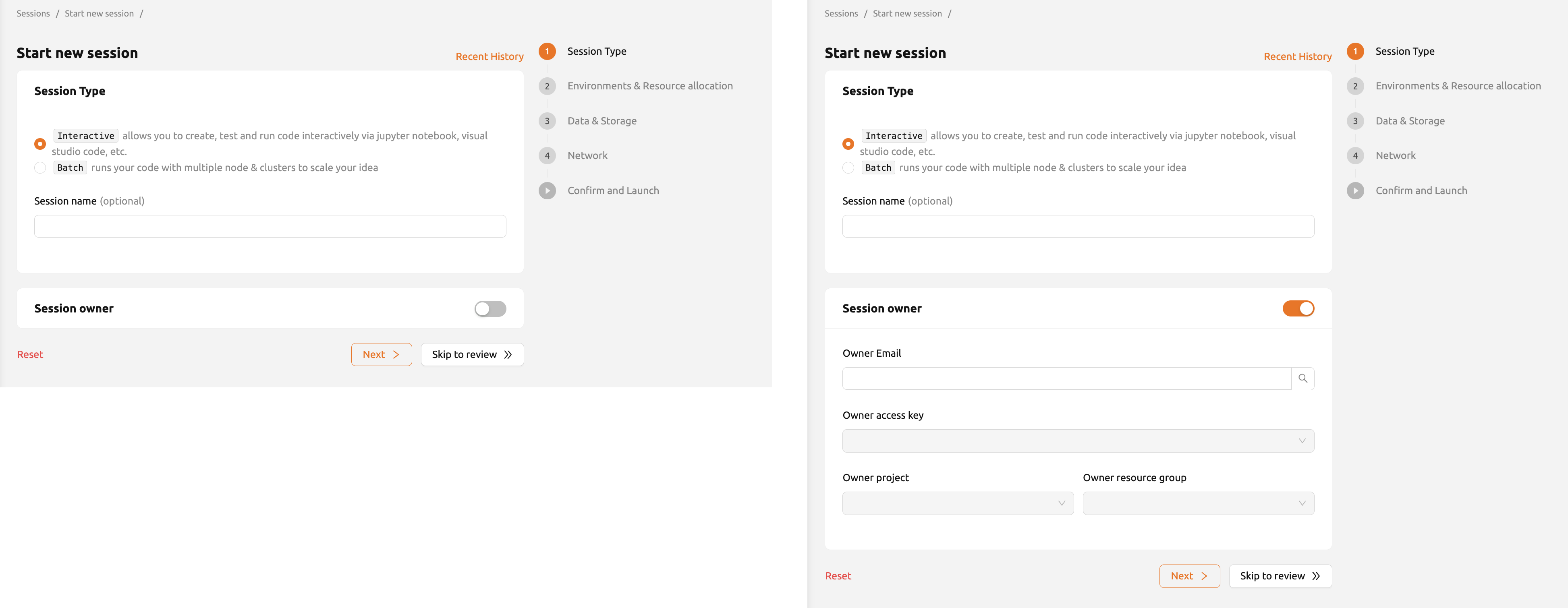

If users create a session with the super admin or admin account, they can additionally assign a session owner. If you enable the toggle, a user email field will appear.

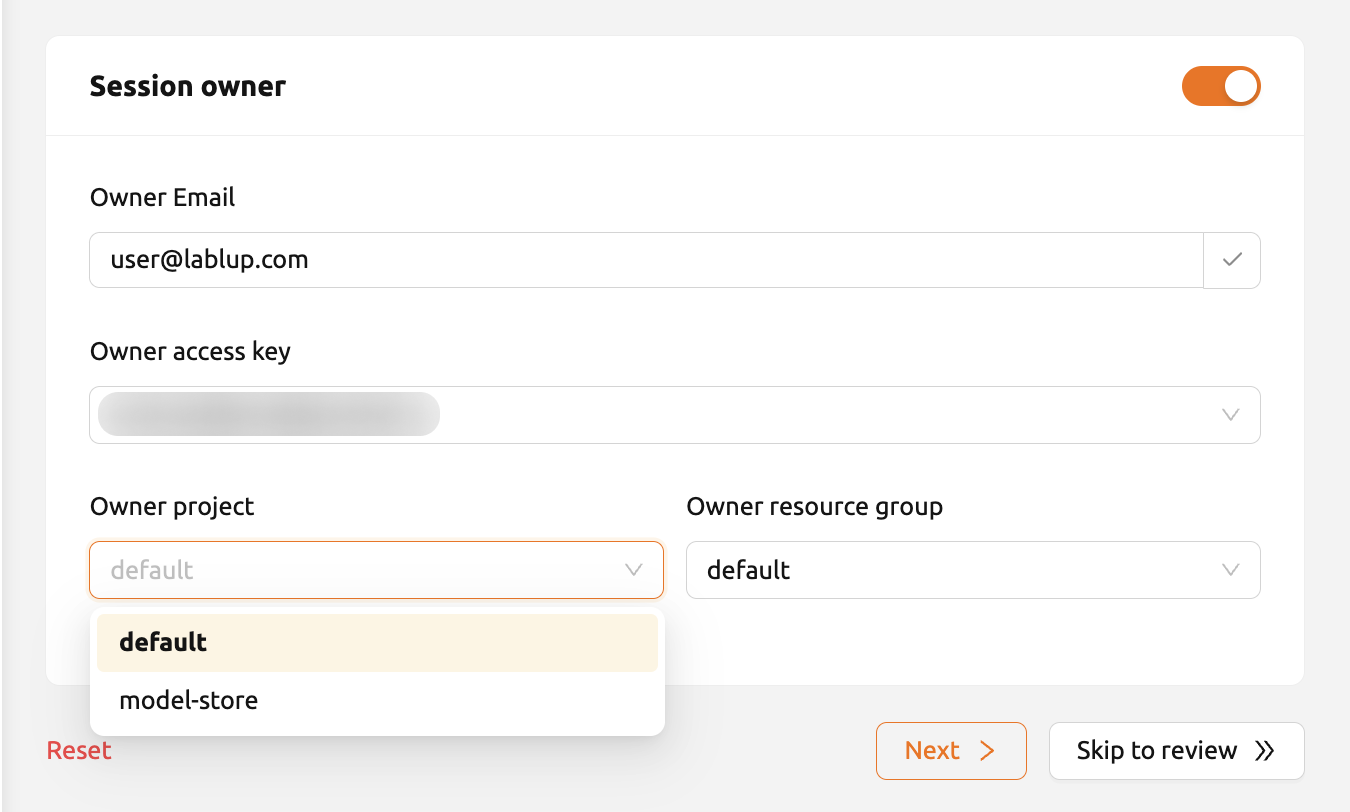

Enter the email of the user you want to assign the session to, click the 'search' button, and the user's access key will be automatically registered. You can also select a project and resource group.

Environments & Resource allocation#

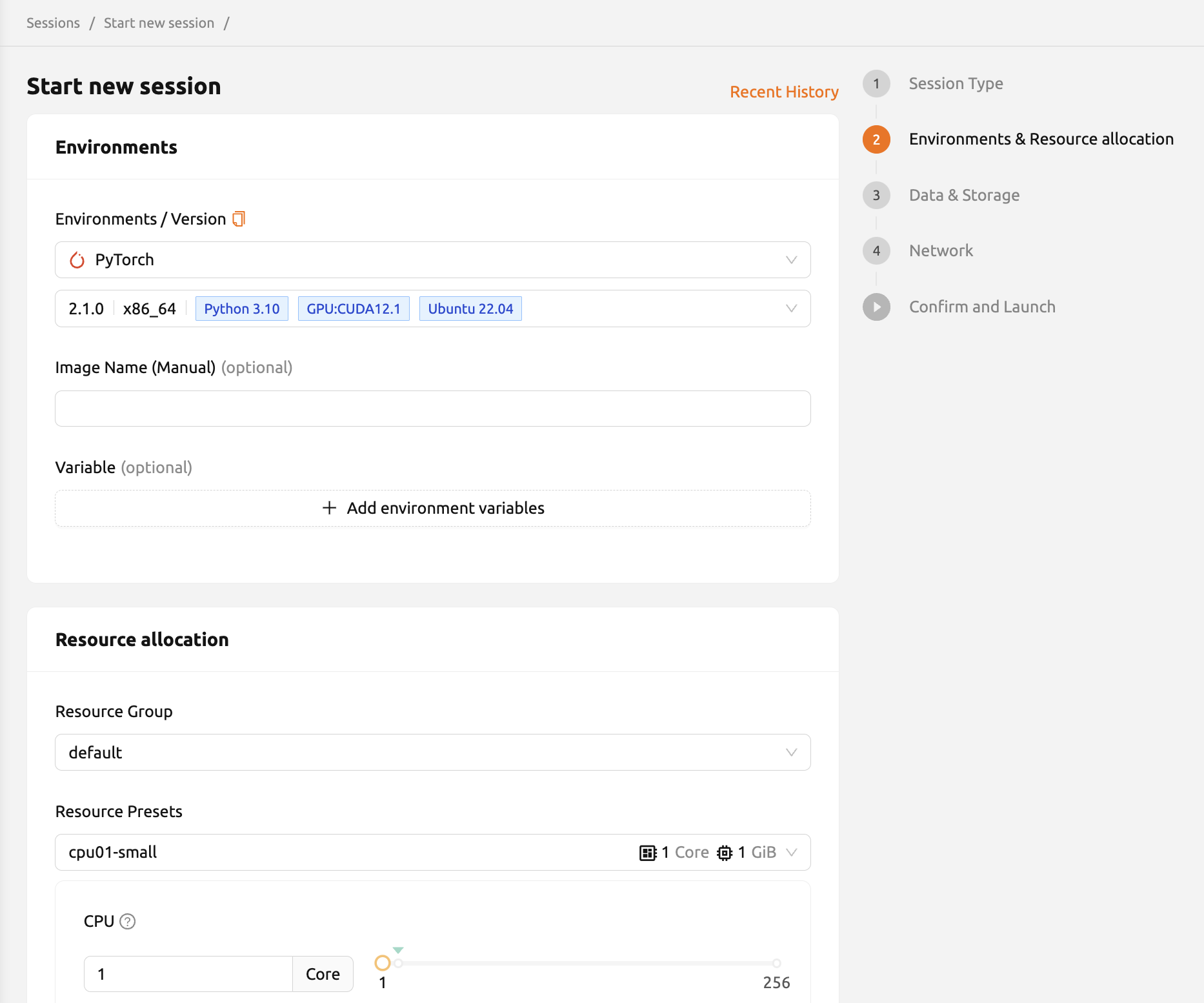

Click the 'Next' button below, or the 'Environments & Resource allocation' menu on the right to proceed to the next page. If you want to create a session without any further settings, press the 'Skip to review' button. In this case, settings on the other pages will all use the default values.

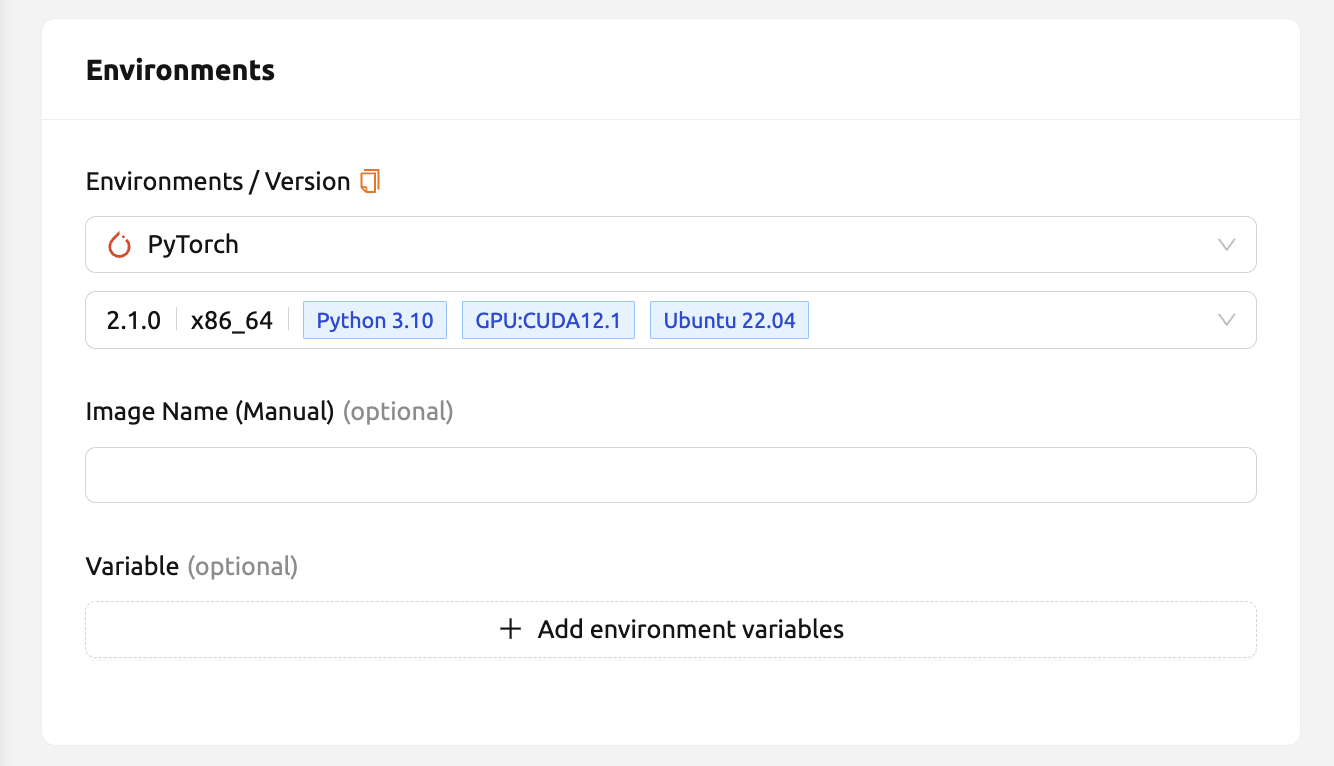

Environments#

For detailed explanations of each item that can be set on the second page, please refer to the following:

• Environments: Users can select the base environment for compute sessions such as TensorFlow, PyTorch, C++, etc. The compute session will automatically included into the base environment library. If users choose another environment, the corresponding packages will be installed by default.

• Version: Users can specify the version of the environment. There are multiple versions in a single environment. For example, TensorFlow has multiple versions such as 1.15, 2.3, etc.,

• Image Name: Users can specify the name of the image to be used for the compute session. This configuration may not be available depending on the environment settings.

• Set Environment Variable: To give more convenient workspace for users, Backend.AI supports environment variable setting in session launching. In this feature, users can add any envs such as PATH by filling out variable name and value in environment configuration dialog.

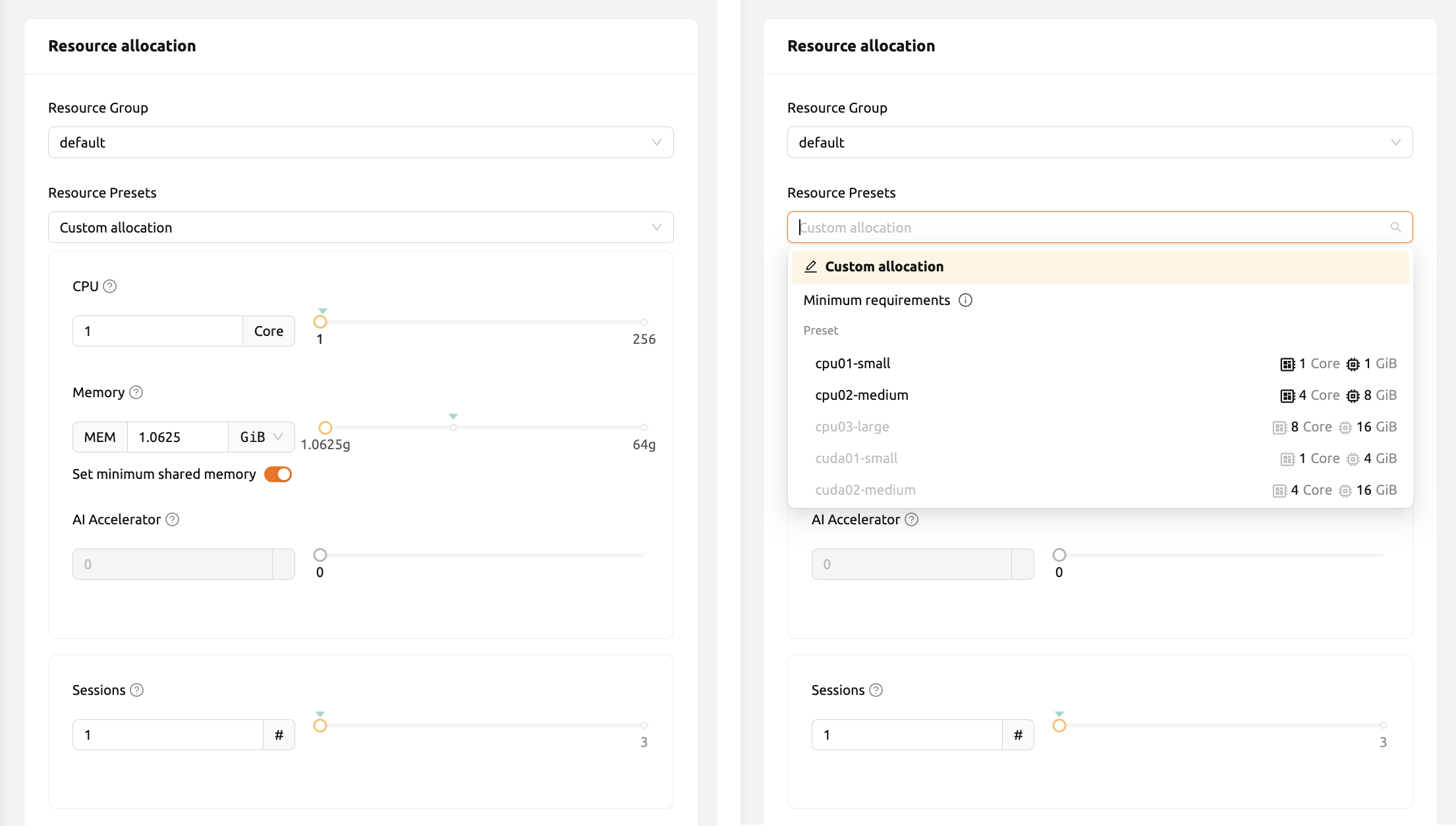

Resource allocation#

• Resource Group: Specifies the resource group in which to create a compute session. A resource group is a unit that groups host servers that each user can access. Usually, servers in a resource group would have the same type of GPU resources. Administrators can classify servers by any criteria, group them into one or more resource groups, configure which resource groups a user can use. Users can launch a compute session only on servers in resource groups allowed by the administrator. If multiple resource groups are allowed, users could select any group they want. However, it cannot be changed when system only allows single-setting.

• Resource Presets: These templates have pre-defined resource sets, such as CPU, memory, and GPU, to be allocated to a compute session. Administrators can define frequently used resource settings in advance. By adjusting the numerical input or sliding the slider, users can allocate the desired amount of resources.



  The meaning of each item is as follows. Clicking the 'Help (?)' button will also give more information.

  • CPU: The CPU performs basic arithmetic, logic, controlling, and input/output (I/O) operations specified by the instructions. In general, more CPUs are beneficial for high-performance computing workloads. But, to reflect the advantage of more CPUs, program code must be written to adapt multiple CPUs.
  • Memory: Computer memory is a temporary storage area. It holds the data and instructions that the Central Processing Unit (CPU) needs. When using a GPU in a machine learning workload, at least twice the memory of the GPU to memory need to be allocated. Otherwise, GPU's idle time will increase, resulting penalty in a performance.
  • Shared Memory: The amount of shared memory in GB to allocate for the compute session. Shared memory will use some part of the memory set in RAM. Therefore, it cannot be greater than the amount specified in RAM.
  • AI Accelerator: AI accelerators (GPUs or NPUs) are well-suited for the matrix/vector computations involved in machine learning. AI accelerators speed up training / inference algorithms by orders of magnitude, reducing running times from weeks to days.
  • Sessions: Session is a unit of computational environment that is created according to a specified environment and resources. If this value is set to a value greater than 1, multiple sessions corresponding to the resource set above are created. If there are not enough resources available, requests to create sessions that cannot be created are put on the waiting queue.

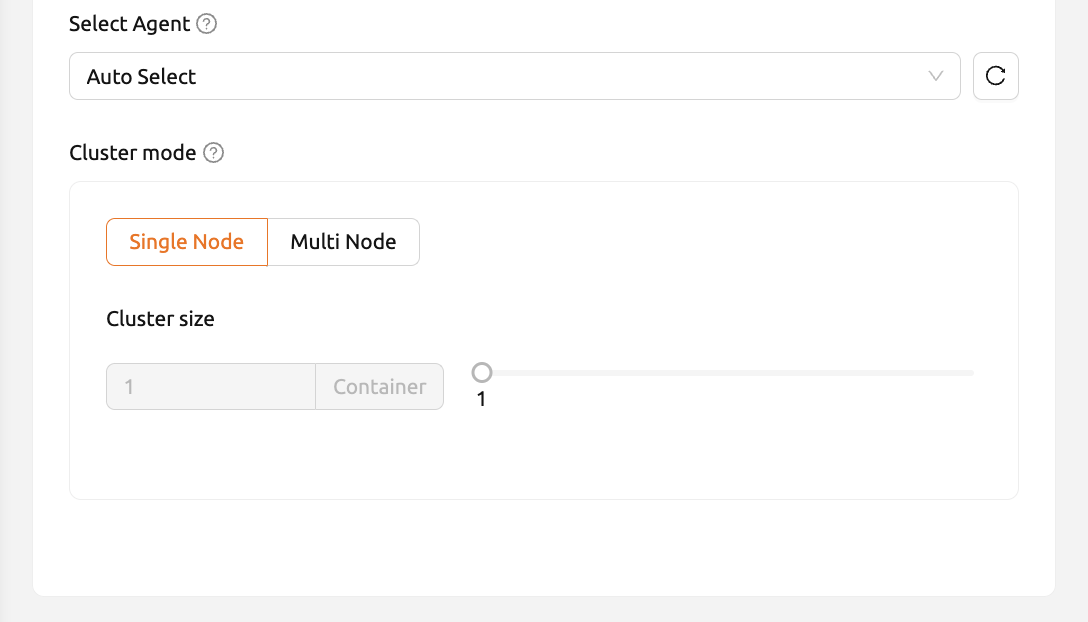

  • Select Agent: Select the agent to be assigned. By default, the agent is automatically selected by the scheduler. The agent selector displays the actual amount of available resources for each agent. Currently, this feature is only supported in single-node, single-container environments.
  • Cluster mode: Cluster mode allows users to create multiple compute sessions at once. For more information, refer to the Overview of Backend.AI cluster compute session.

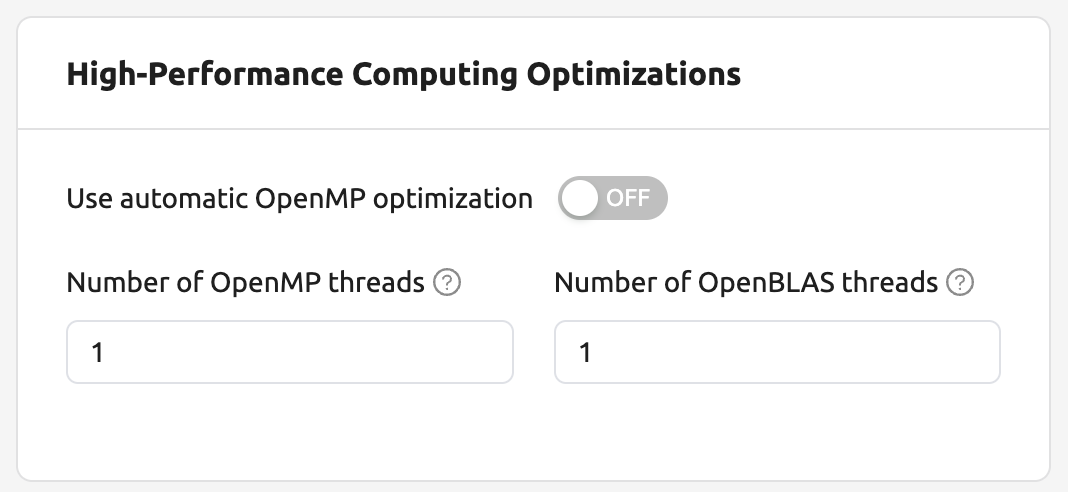

• High-Performance Computing Optimizations: Backend.AI provides configuring values related to HPC Optimizations.

  Backend.AI provides configuration UI for internal control variable in nthreads-var. Backend.AI sets this value equal to the number of session's CPU cores by default, which has the effect of accelerating typical high-performance computing workloads. Nevertheless, for some multi-thread workloads, multiple processes using OpenMP are used at same time, resulting in an abnormally large number of threads and significant performance degradation. To resolve this issue, setting the number of threads to 1 or 2 would work.

Data & Storage#

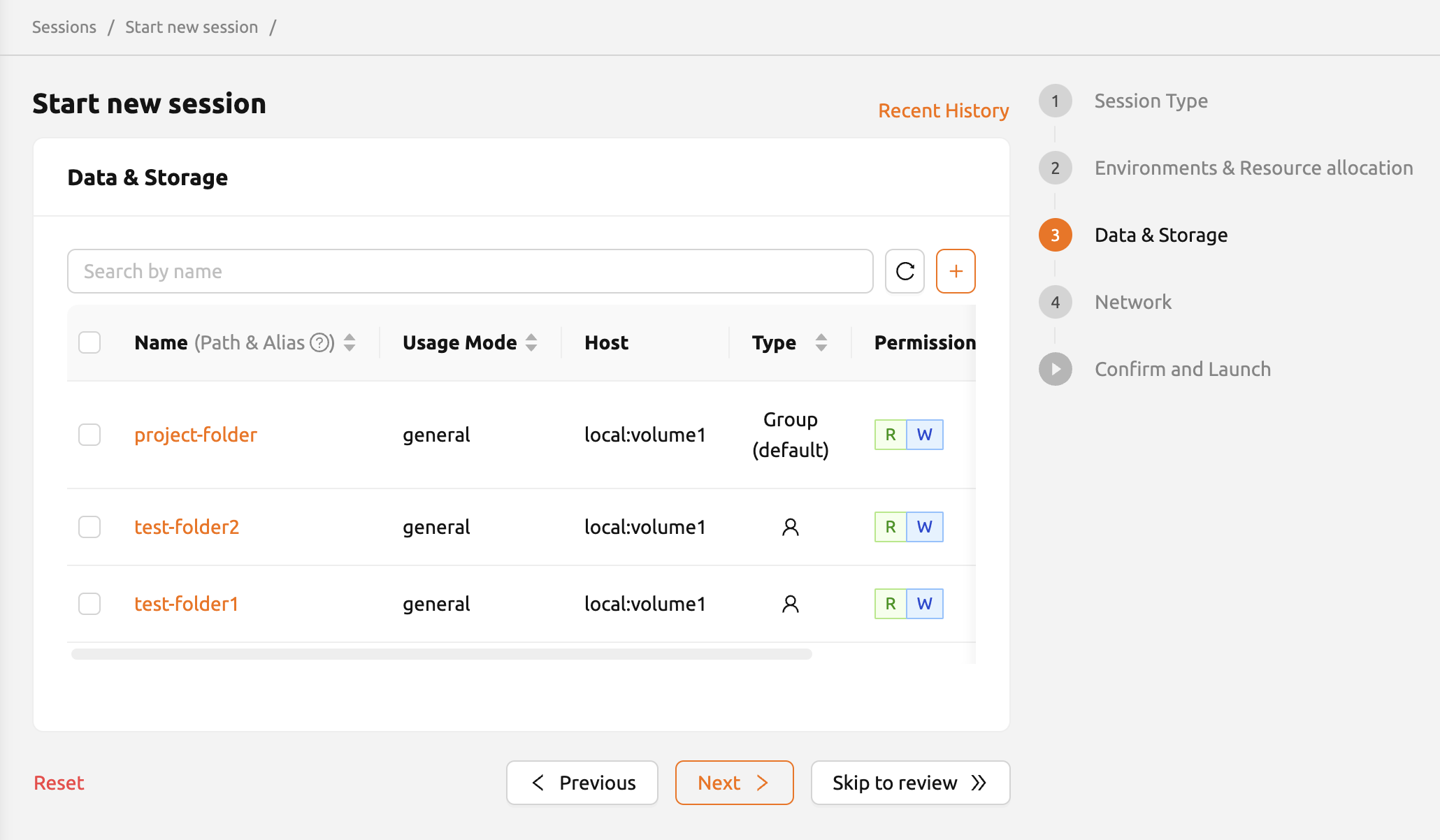

Click the 'Next' button below, or the 'Data & Storage' menu on the right to proceed to the next page.

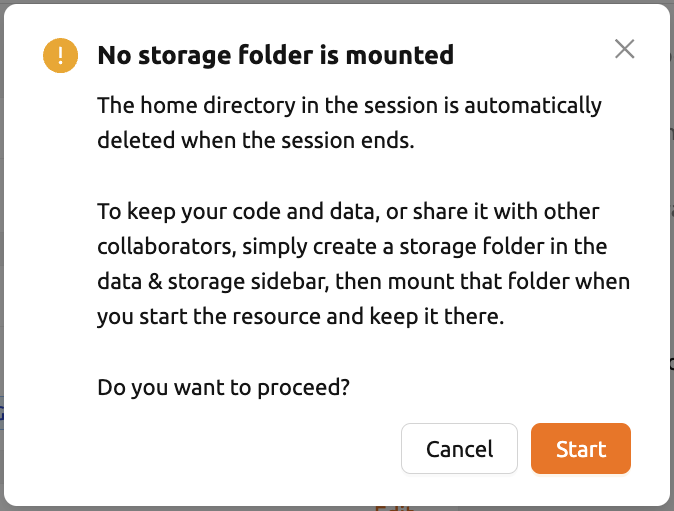

When a compute session is destroyed, data deletion is set to default. However, data stored in the mounted folders will survive. Data in those folders can also be reused by mounting it when creating another compute session. For further information on how to mount a folder and run a compute session, refer to Mounting Folders to a Compute Session.

users can specify the data folders to mount in the compute session. Folder explorer can be used by clicking folder name. For further information, please refer Explore Folder section.

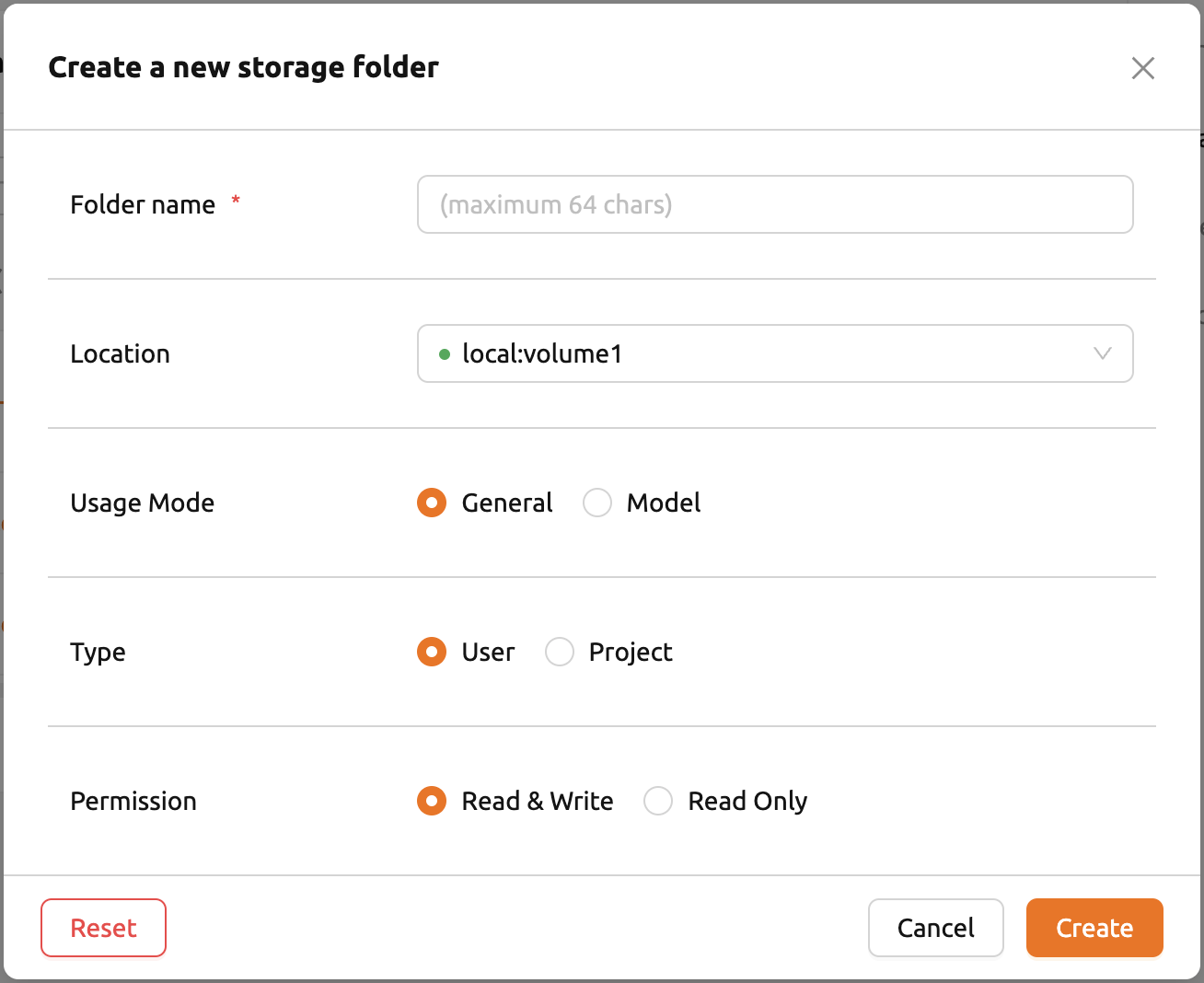

New folder can be created by clicking the '+' button next to the search box. When new folder is created, it will automatically be selected as the folder to mount. For further information, please refer Create Storage Folder section.

Network#

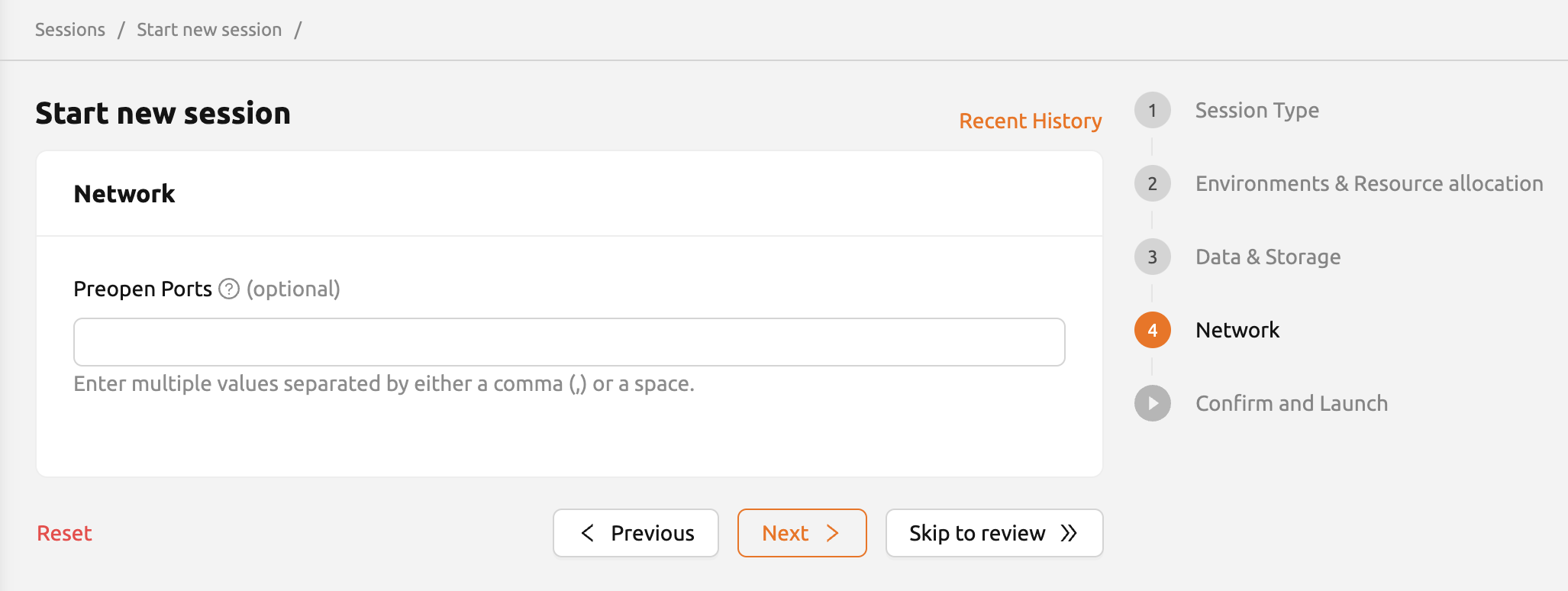

Click the 'Next' button below, or the 'Network' menu on the right to proceed to the next page. On this page, Network configuration can be done such as Preopen Ports.

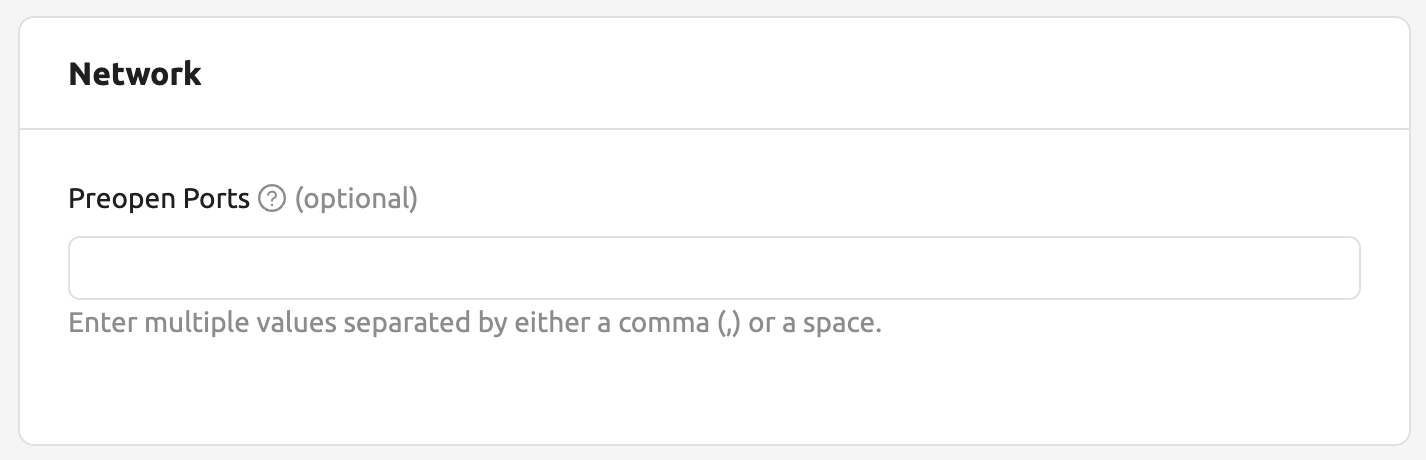

• Set Preopen Ports: Provides an interface for users to set preopen ports in a compute session. Refer to the How to add preopen ports before session creation for further information.

Confirm and Launch#

If you are done with the network setting, click the 'Next' button below, or 'Confirm and Launch' button on the right to proceed to the last page.

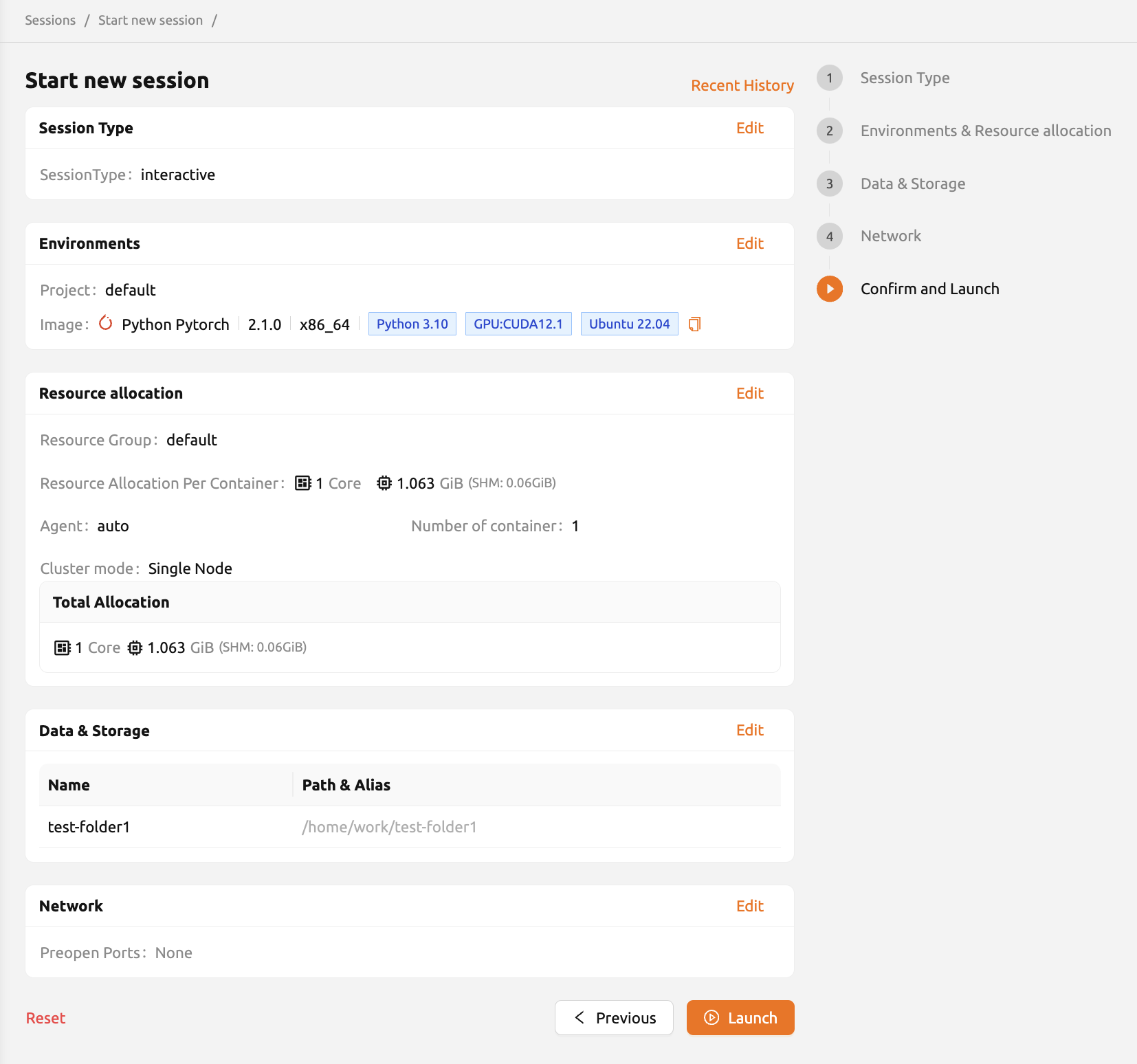

On the last page, users could view information of session(s) to create, such as environment itself, allocated resources, mount information, environment variables set on the previous pages, preopen ports, etc., Review the settings, users could launch the session by clicking 'Launch' button. Click the 'Edit' button located at the top right of each card to redirect to relevant page.

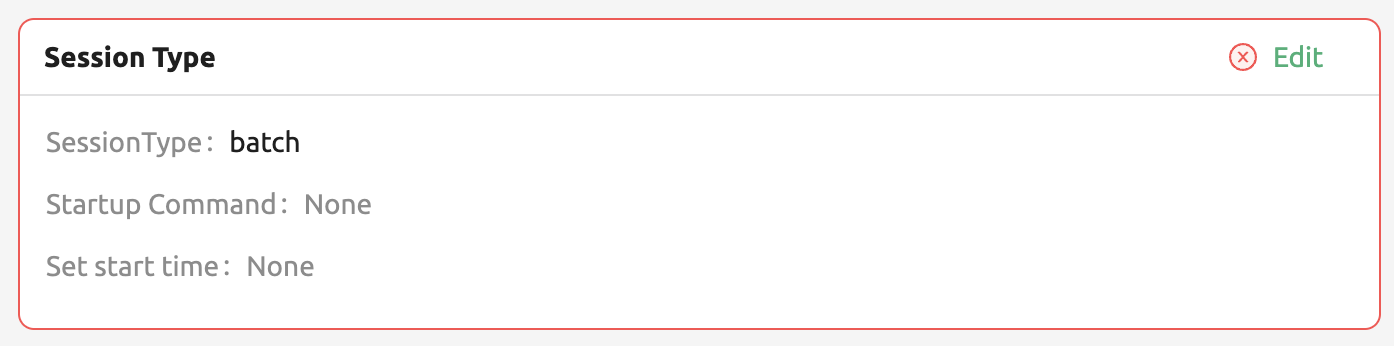

If there is an issue with the settings, an error message will be displayed as follows. Users can edit their settings when this happens.

When you click the 'Launch' button, a warning dialog appears stating that there are no mounted folders. If folder mounting is not required, you can ignore the warning and click the 'Start' button in the dialog to proceed.

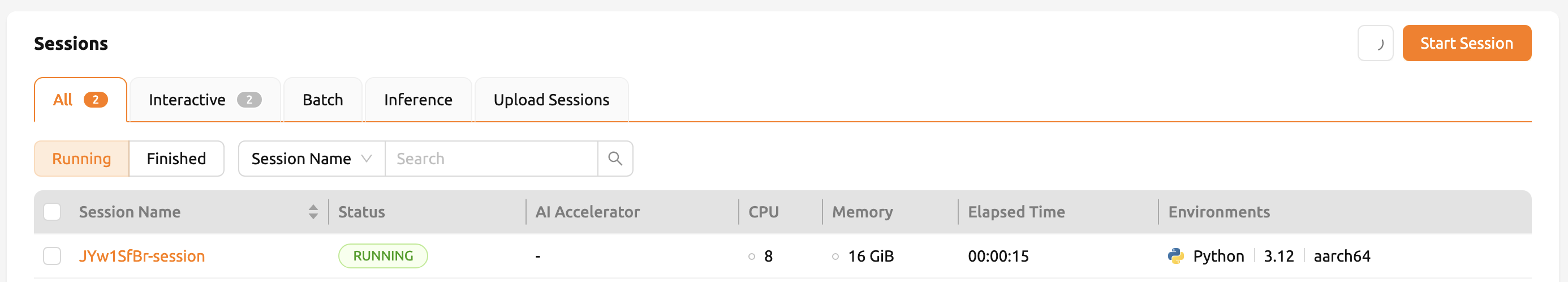

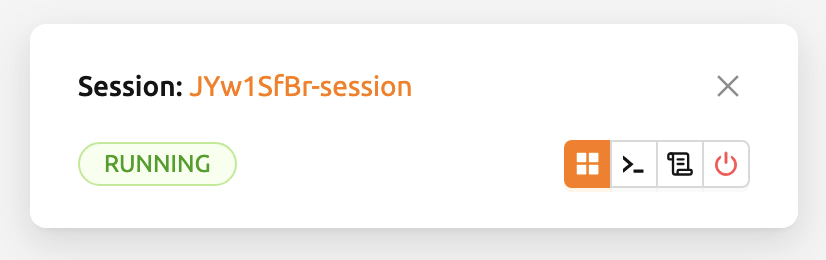

When a new compute session is added in the Running tab, a notification appears at the bottom-right corner of the screen. The bottom-left area of the notification displays the session status, while the bottom-right area includes buttons for opening the app dialog, launching the terminal, viewing container logs, and terminating the session. You can also view this session creation notification by clicking Notifications in the header.

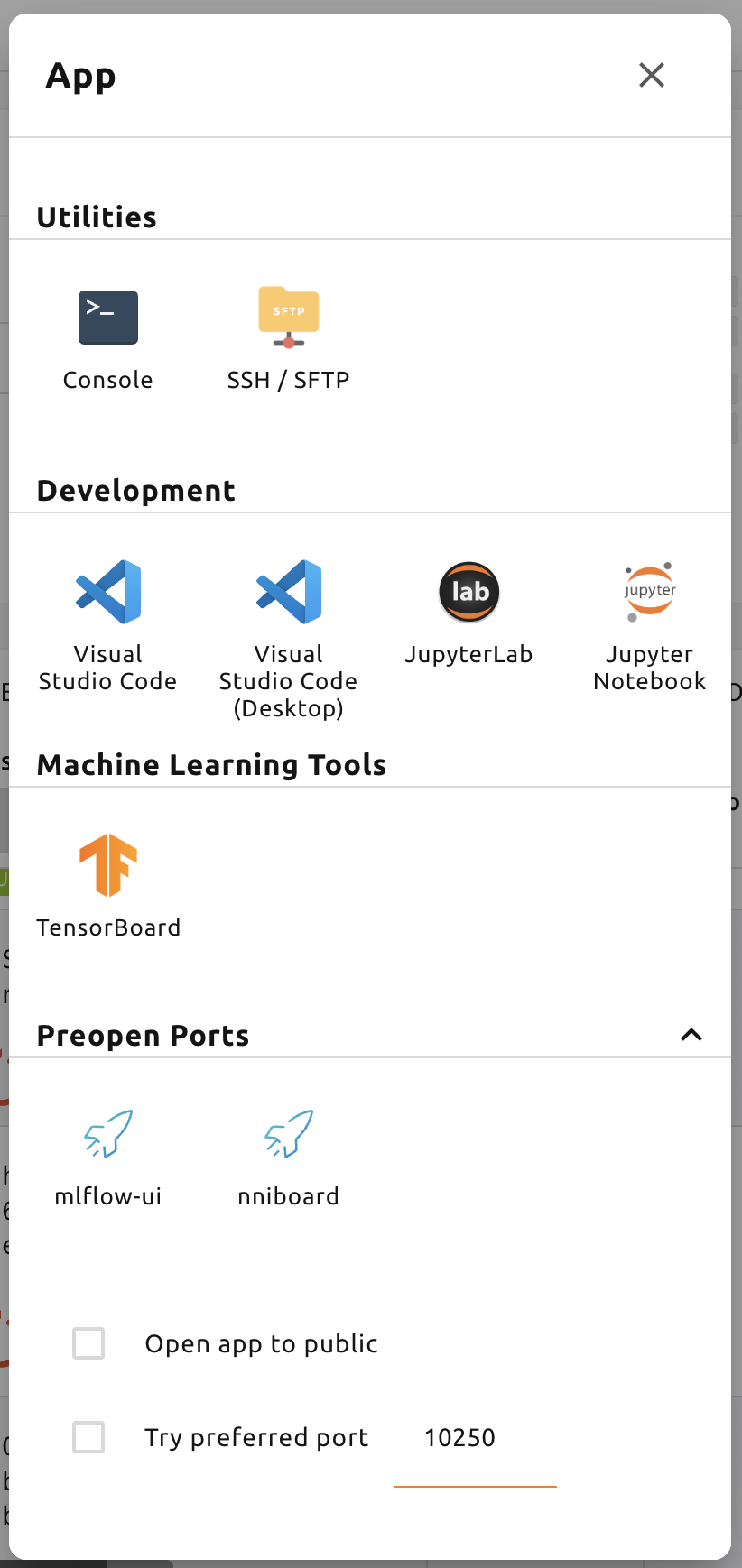

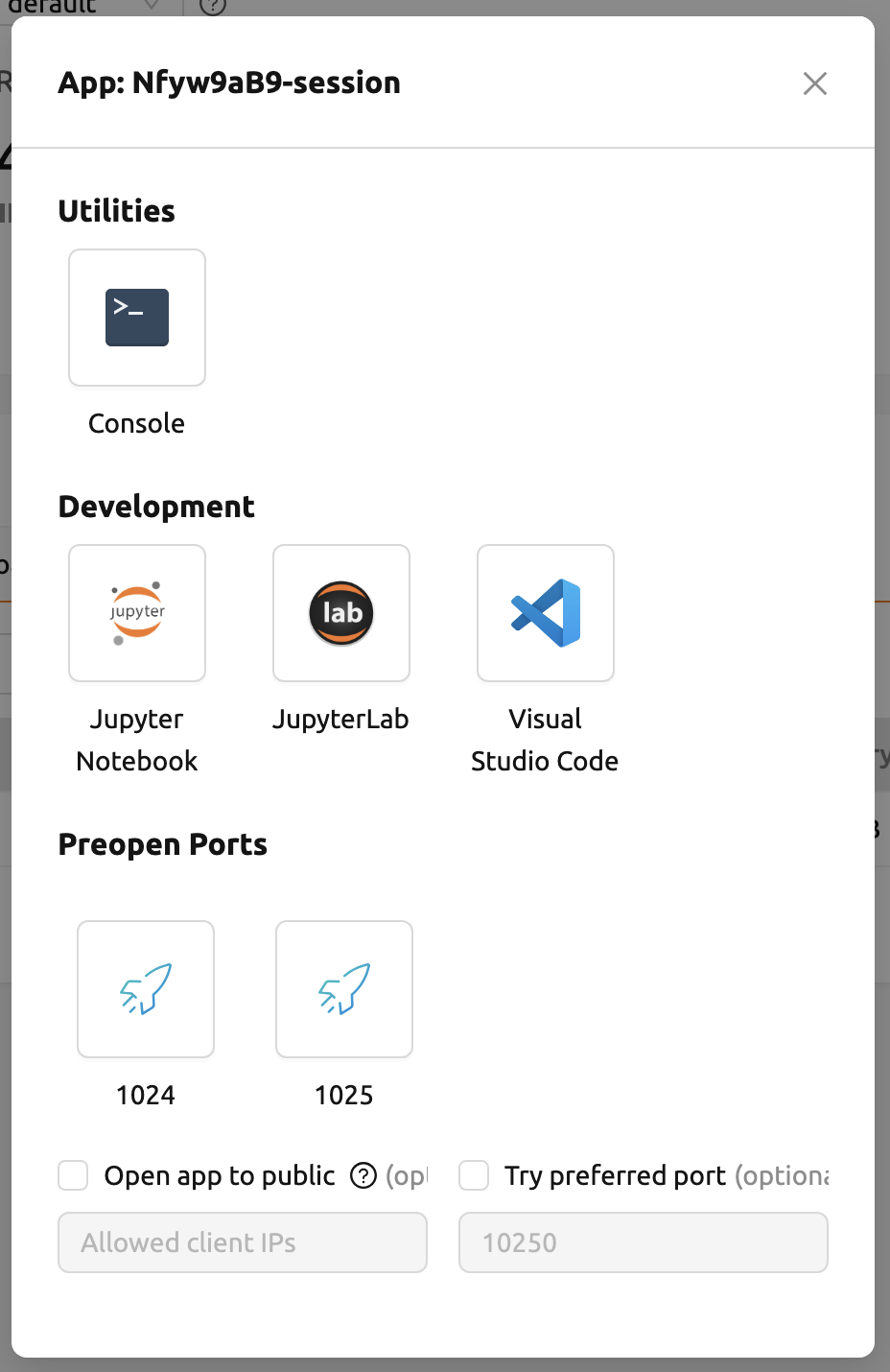

By clicking the app dialog button on the far left, you can view the available app services.

Recent History#

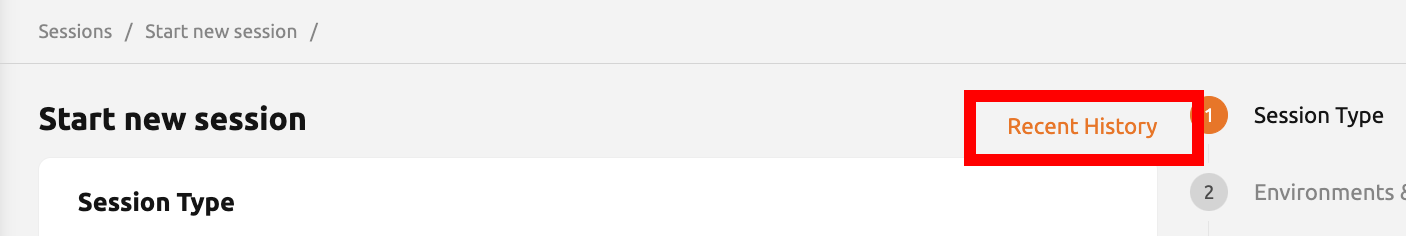

'Session Launcher' page provides a set of options for creating sessions. As of 24.09, Recent History feature has been added to remember information about previously created sessions.

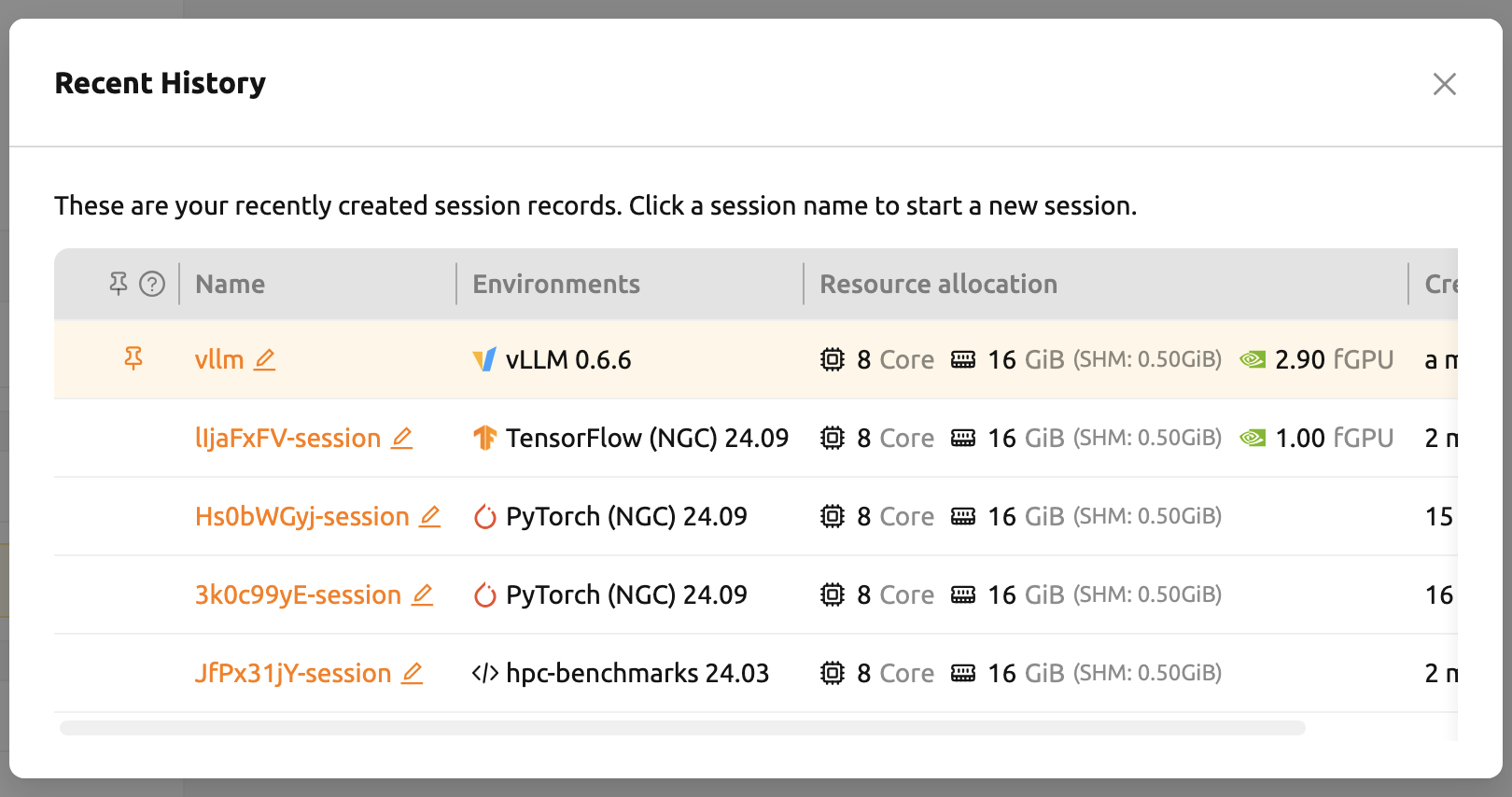

The Recent History modal stores information about the five most recently created sessions. Clicking a session name takes you to the 'Confirm and Launch' page, which is the final step of session creation. Each item can be renamed or pinned for easier access.

Session Detail Panel#

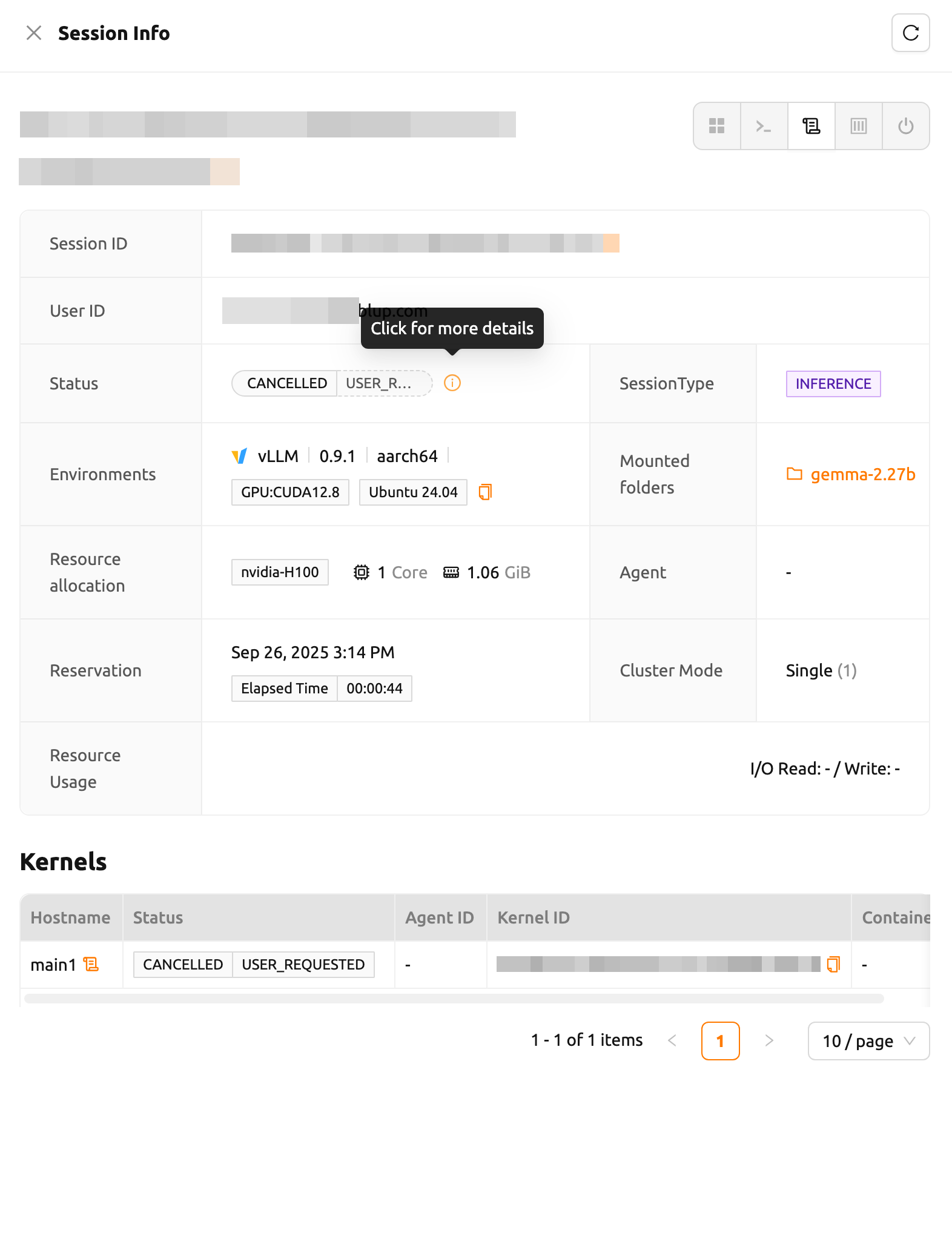

For detailed information on the session, click the session name in the session list. The session details panel shows the information of the session, such as the session ID, user ID, status, type, environments, mount information, resource allocation, reserved time, elapsed time, agent, cluster mode, resource usage including network I/O, and kernel information.

Click the 'Log' button next to the 'Hostname' in 'Kernels' to view the logs of that kernel directly.

Backend.AI provides additional information for sessions in PENDING, TERMINATED, or CANCELLED states. Click the 'Info' button to check the details when available.

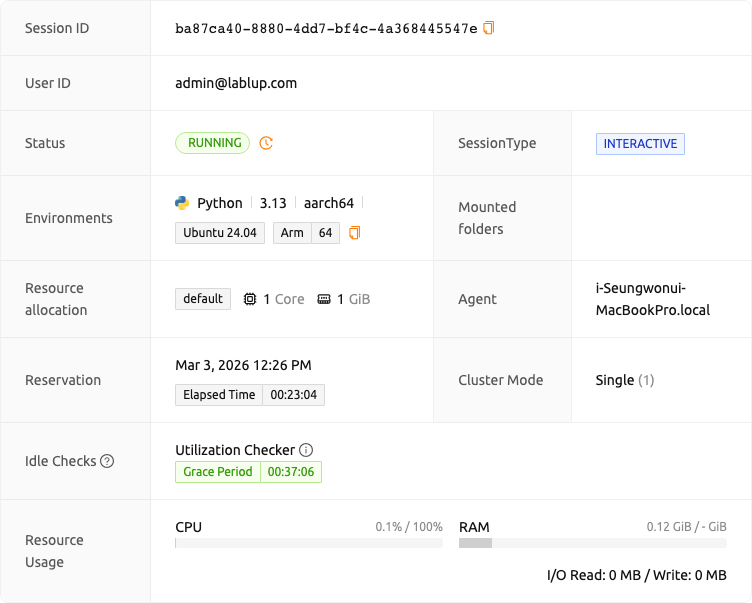

When using Backend.AI Manager v26.2.0 or later, a clock icon button appears next to the session status tag in the session detail panel. Clicking this icon opens the Session Scheduling History modal, which provides a detailed log of all scheduling decisions the system made for the session. For more information, refer to the Session Scheduling History section.

Session Scheduling History#

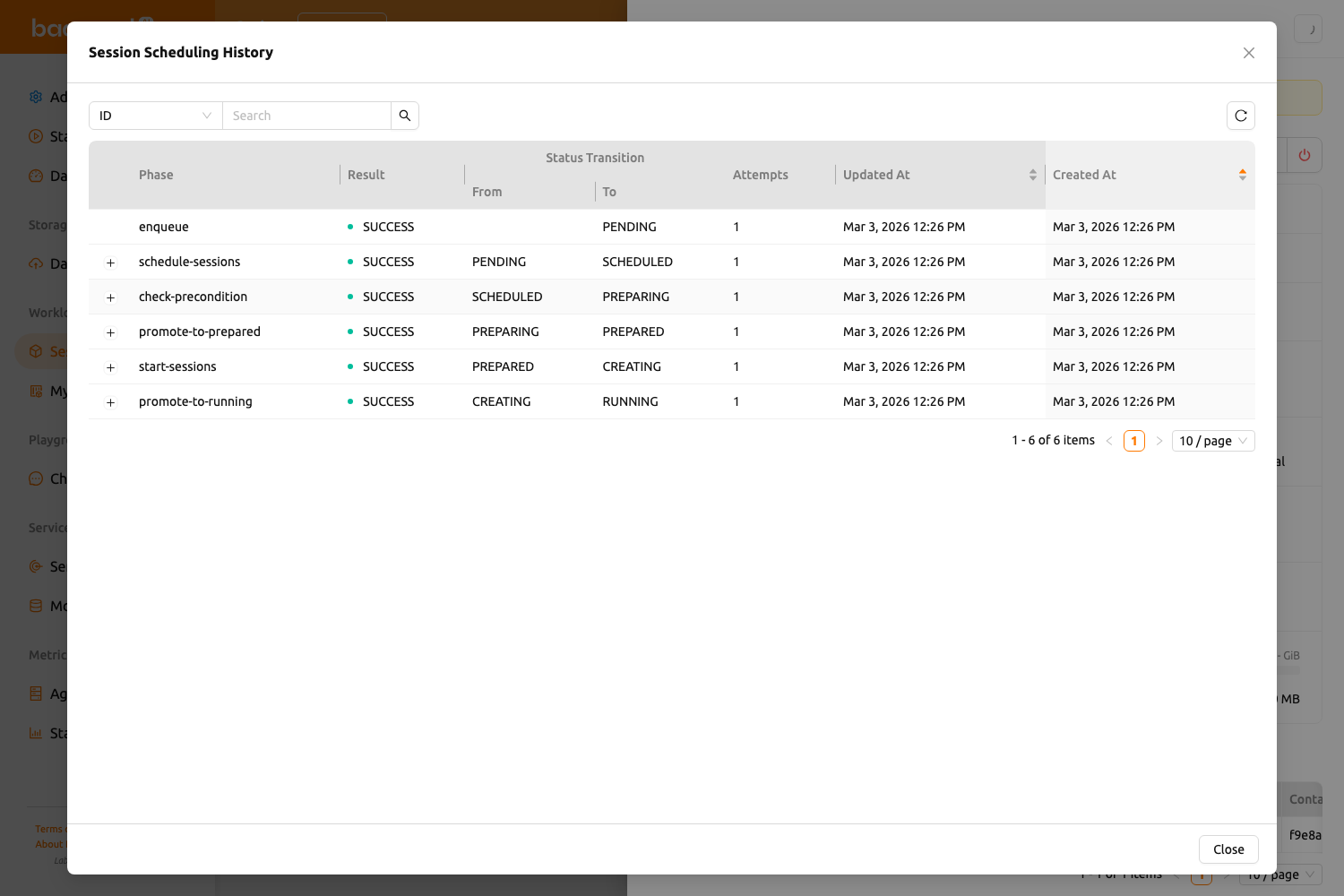

The Session Scheduling History modal provides transparency into the internal scheduling lifecycle of a compute session. It displays a detailed record of every scheduling phase the session went through, including status transitions, results, retry attempts, and any errors encountered. This is particularly useful for understanding why a session is delayed, stuck in PENDING, or has failed to start.

Filter Bar#

At the top of the modal, a filter bar allows you to narrow down the scheduling history records. You can filter by the following properties:

• ID: Filter by history record ID (UUID, exact match)
• Phase: Filter by scheduling phase name
• Result: Filter by result type (SUCCESS, FAILURE, STALE, NEED_RETRY, EXPIRED, GIVE_UP, SKIPPED)
• From Status: Filter by the session status before the scheduling step
• To Status: Filter by the session status after the scheduling step
• Error Code: Filter by error code
• Message: Filter by message content

A refresh button is also available next to the filter bar to reload the scheduling history data.

History Table#

The scheduling history table displays records with the following columns:

• Phase: The name of the scheduling phase
• Result: The outcome of this scheduling step, shown as a color-coded badge
• Status Transition (From / To): The session status before and after this scheduling step
• Attempts: How many times this scheduling step was attempted
• Updated At: When this record was last updated
• Created At: When this record was created

You can sort the table by the Created At or Updated At columns to view records in your preferred order.

Expandable Sub-Steps#

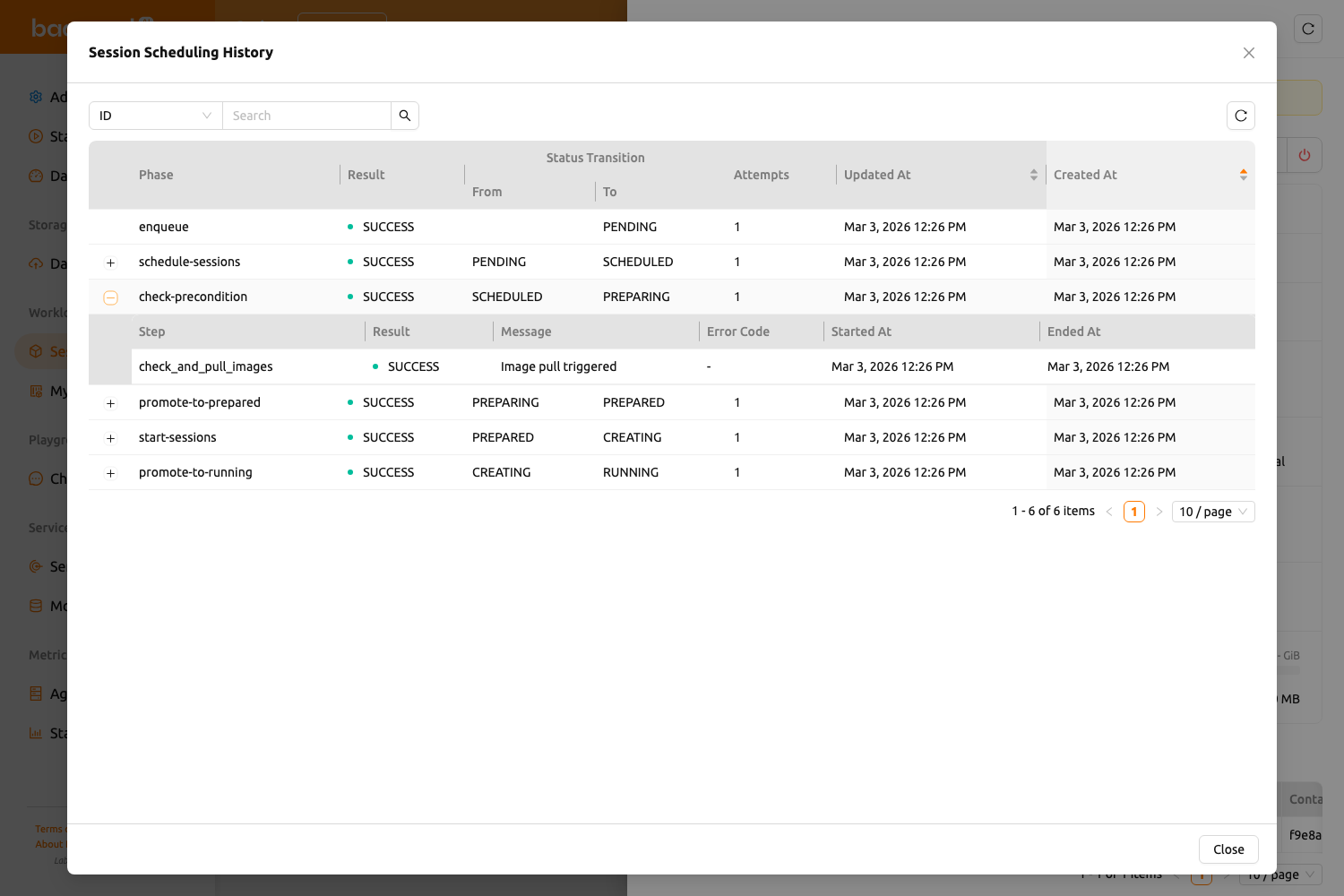

Some history records contain detailed sub-steps. When sub-steps are available, an expand arrow appears on the left side of the row. Click it to reveal a nested table showing the individual sub-steps of that scheduling phase.

The sub-steps table includes the following columns:

• Step: The name of the sub-step
• Result: The outcome of the sub-step, shown as a color-coded badge
• Message: Detailed information or error description
• Error Code: A specific error code if the step failed
• Started At: When the sub-step began
• Ended At: When the sub-step completed

Result Badge Colors#

Each scheduling step and sub-step displays a color-coded result badge indicating its outcome:

Use Jupyter Notebook#

Let's look at how to use and manage an already running compute session. Click the first icon in the upper-right corner of the session detail panel to open the app launcher, which shows the app services available for that session.

Let's click on Jupyter Notebook.

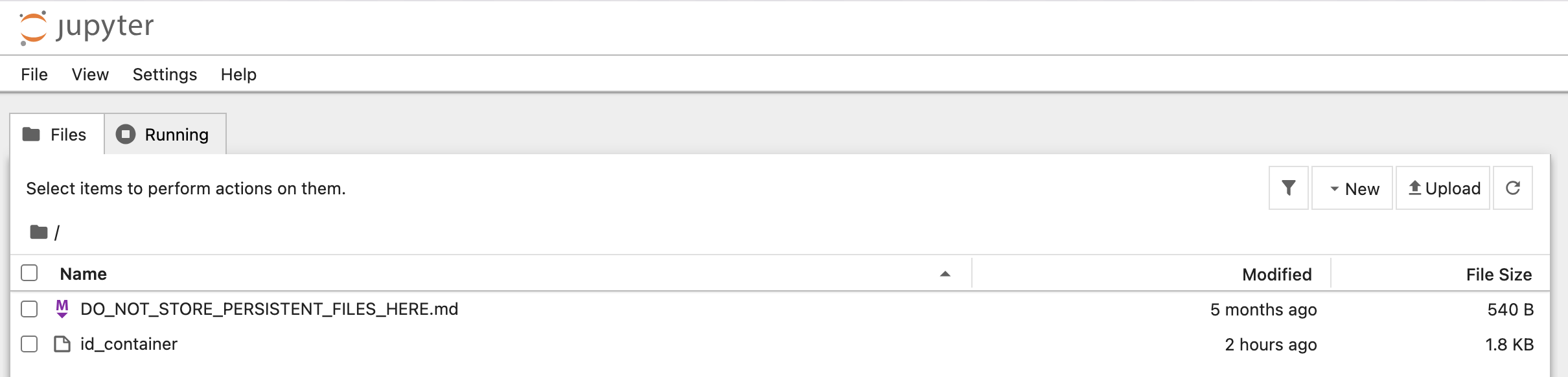

Pop up windows will show that Jupyter Notebook is running. This notebook was created inside a running compute session and can be used easily with the click of a button. Also, there is no need for a separate package installation process because the language environment and library provided by the computation session can be used as it is. For detailed instructions on how to use Jupyter Notebook, please refer to the official Jupyter Notebook documentation.

id_container file in the notebook's file explorer, contains a private SSH key. If necessary, users can download it and use it for SSH / SFTP access to the container.

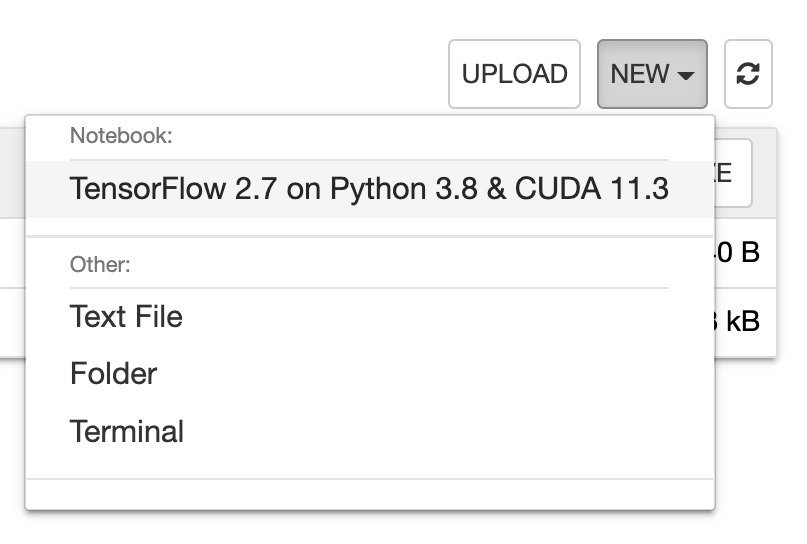

Click the 'NEW' button at the top right and select the Notebook for Backend.AI, then the ipynb window appears where users can enter their own code.

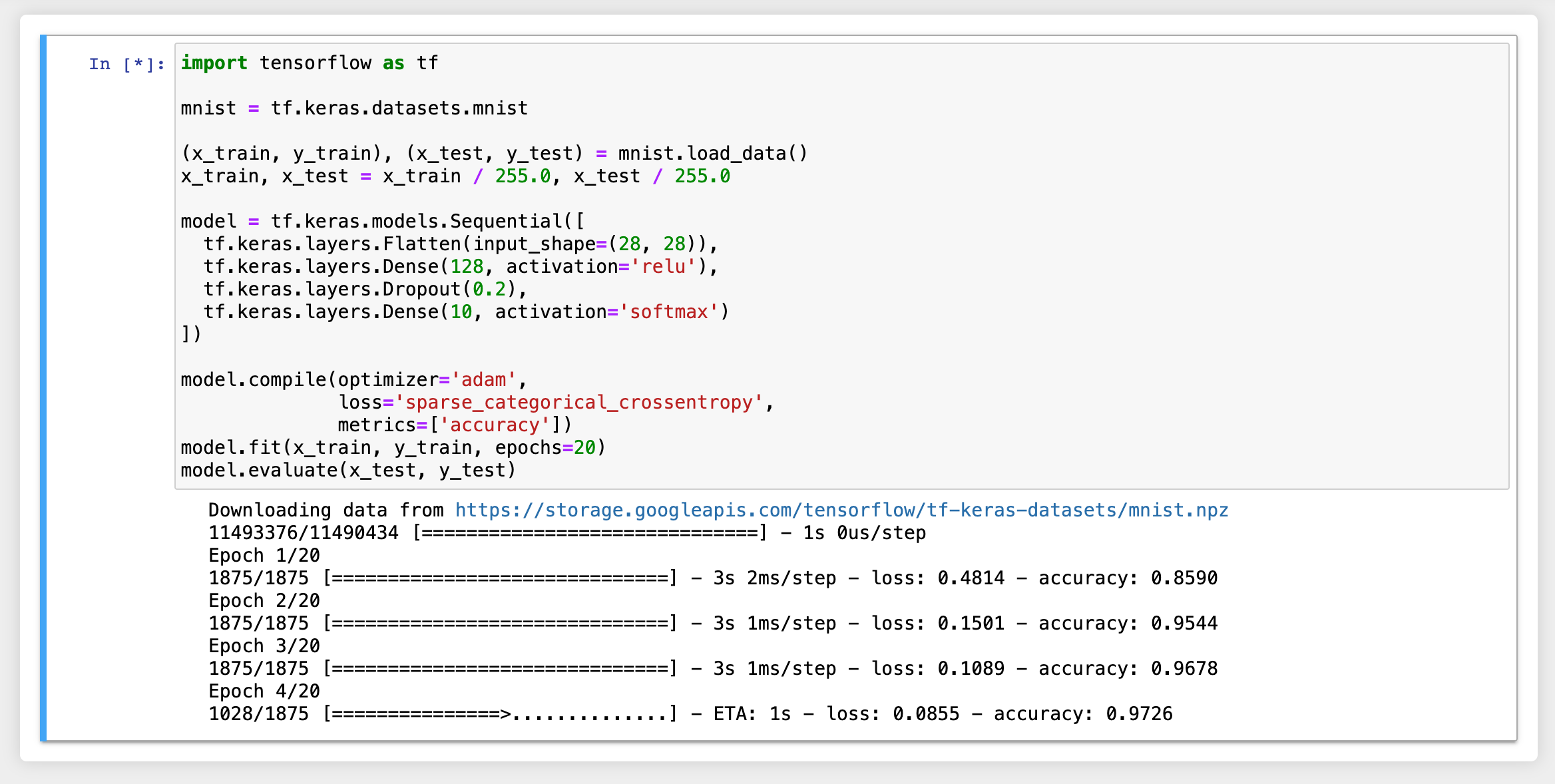

In this window, users can enter and execute any code that they want by using the environment that session provides. The code is executed on one of the Backend.AI nodes where the compute session is actually created and there is no need to configure a separate environment on the local machine.

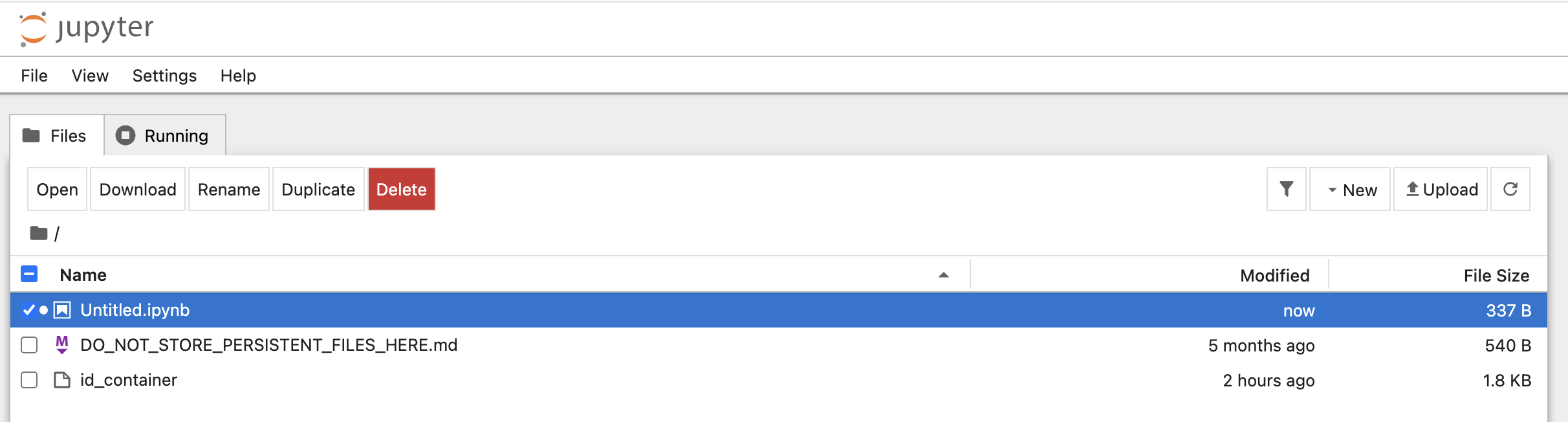

When window is closed, Untitled.ipynb file can be founded in the notebook file explorer. Note that the files created here are deleted when session is terminated. The way to preserve those files even after the session is terminated is described in the Data & Storage Folders section.

Use web terminal#

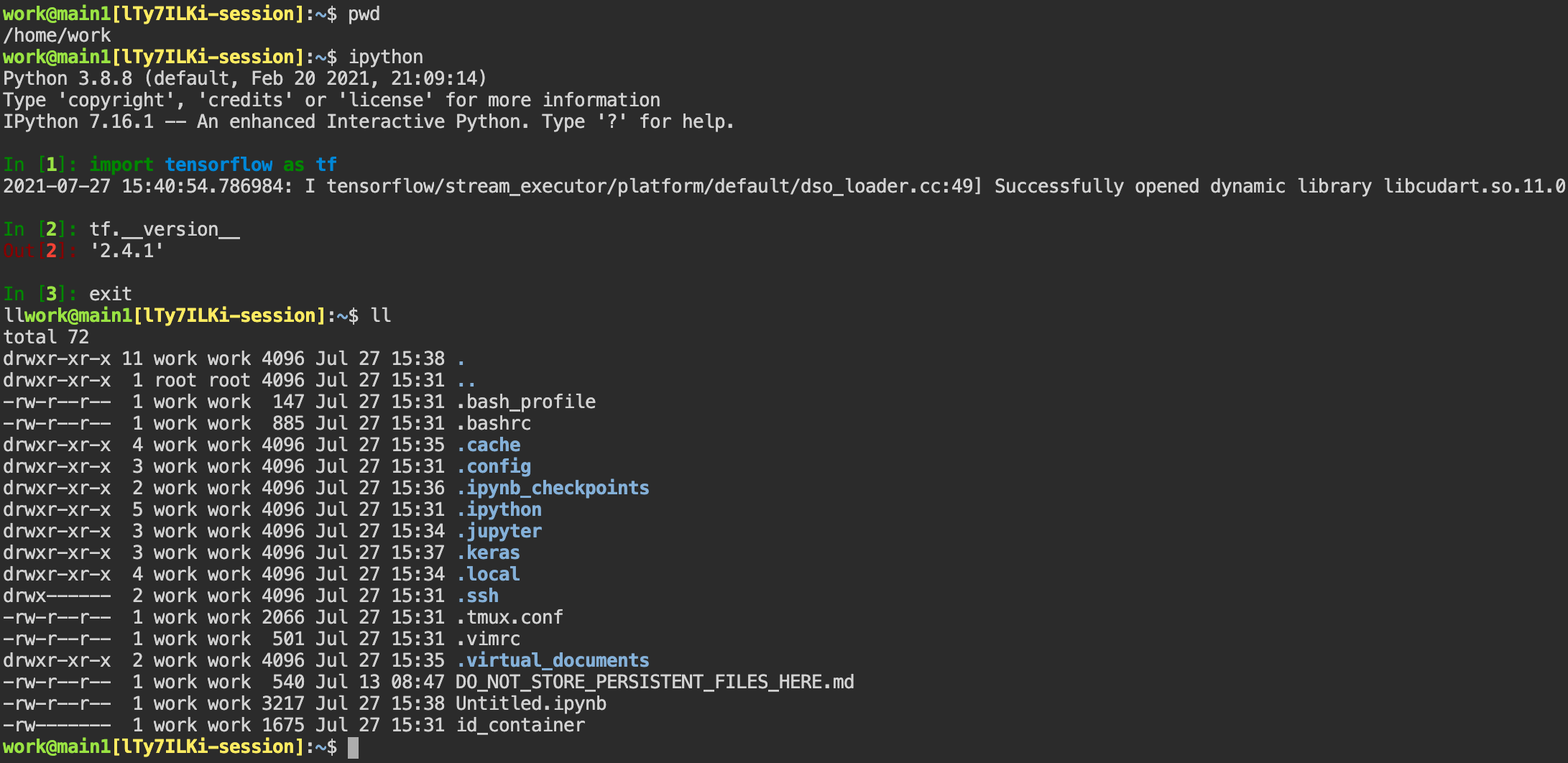

This section will explain how to use the web terminal. Click the terminal icon(second button) to use the container's ttyd app. A terminal will appear in a new window and users can run shell commands to access the computational session as shown in the following figure. If familiar with the commands, users can easily run various Linux commands. Untitled.ipynb file can be found in Jupyter Notebook, which is listed with the ls command. This shows that both apps are running in the same container environment.

Files created here can also be immediately seen in the Jupyter Notebook as well. Conversely, changes made to files in Jupyter Notebook can also be checked right from the terminal. This is because they are using the same files in the same compute session.

In addition to this, users can use web-based services such as TensorBoard, Jupyter Lab, etc., depending on the type of environments provided by the compute session.

Query compute session log#

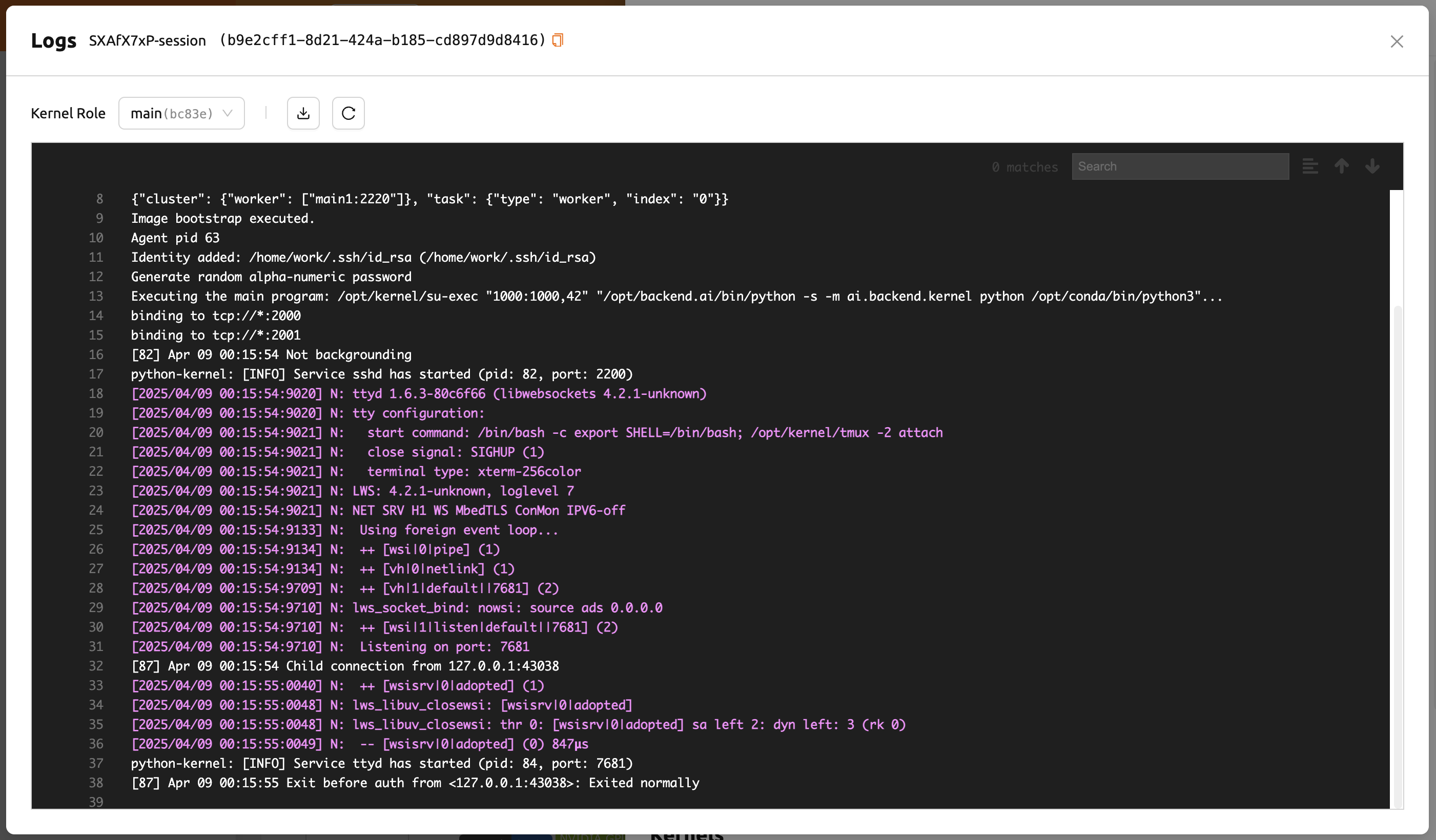

Users can view the log of the compute session by clicking the last icon in the Control panel of the running compute session.

Rename running session#

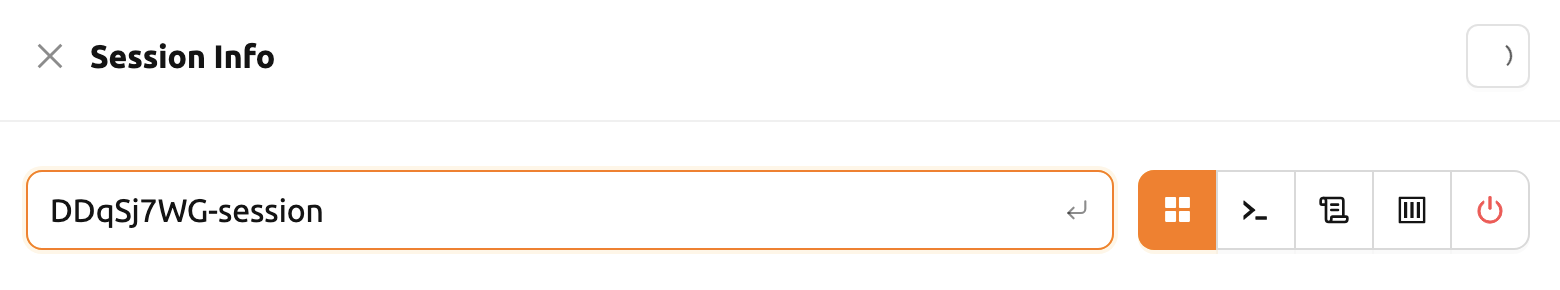

Name of the active session can be changed. Click the 'Edit' button in the session detail panel to change the session name. New session name should also follow the the authoring rule.

Delete a compute session#

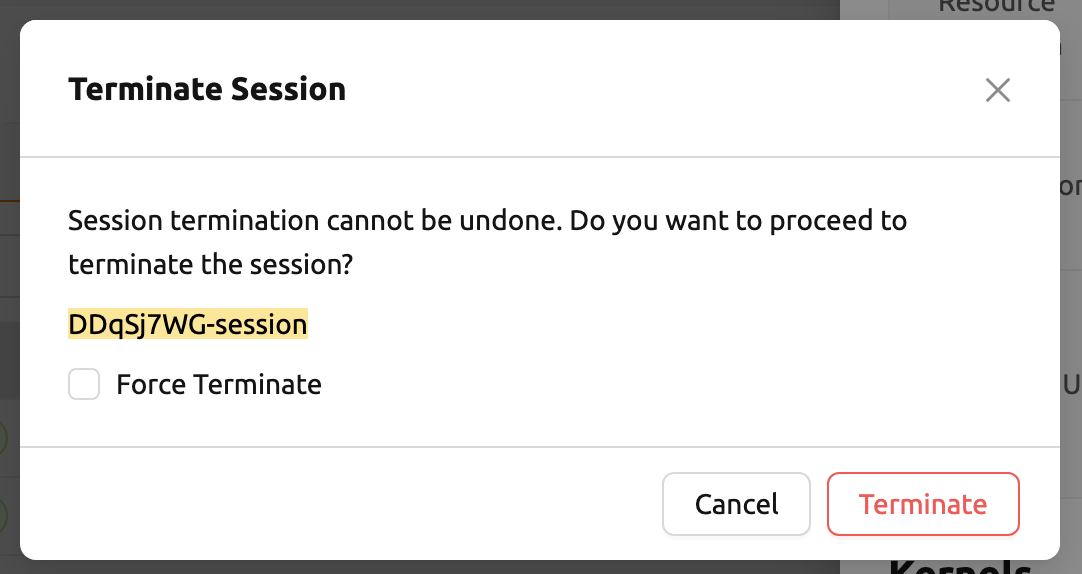

To terminate a specific session, simply click on the red power button and click 'Terminate' button in the dialog. Since the data in the folder inside the compute session is deleted as soon as the compute session ends, it is recommended to move the data to the mounted folder or upload it to the mounted folder from the beginning.

Idleness checks#

Backend.AI supports three types of inactivity (idleness) criteria for automatic garbage collection of compute sessions: Max Session Lifetime, Network Idle Timeout, and Utilization Checker.

The criteria for session termination can be found in the 'Idle Checks' section of the session detail panel.

The meaning of idle checkers are as follows, and more detailed explanations can be found by clicking the information (i) button in the idle checks section.

• Max Session Lifetime: Force-terminate sessions after this time from creation. This measure prevents sessions from running indefinitely.

• Network Idle Timeout: Force-terminate sessions that do not exchange data with the user (browser or web app) after this time. Traffic between the user and the compute session continuously occurs when the user interacts with an app, like terminal or Jupyter, by keyboard input, Jupyter cell creation, etc. Jupyter cell creation, etc. If there is no interaction for a certain period, the condition of garbage collection will be met. Even if there is a process executing a job in the compute session, it is subject to termination if there is no user interaction.

• Utilization Checker: Resources allocated to a compute session are reclaimed based on the utilization of those resources. The decision to delete is based on the following two factors:

  • Grace Period: The time during which the utilization idle checker is inactive. Even with low usage, the compute session won't be terminated during this period. However, once the grace period is over, if the average utilization remain below the threshold during the set idle timeout period, the system can terminate the session at any time. The grace period is merely a guaranteed duration during which termination does not occur. This measure is primarily for efficient management of low-usage GPU resources.
  • Utilization Threshold: If the resource utilization of a compute session does not exceed the set threshold for a certain duration (idle timeout), that session will be automatically terminated. For example, if the accelerator utilization threshold is set to 1%, and a compute session shows a utilization of less than 1% over the idle timeout, it becomes a target for termination. Resources with empty values are excluded from the garbage collection criteria.

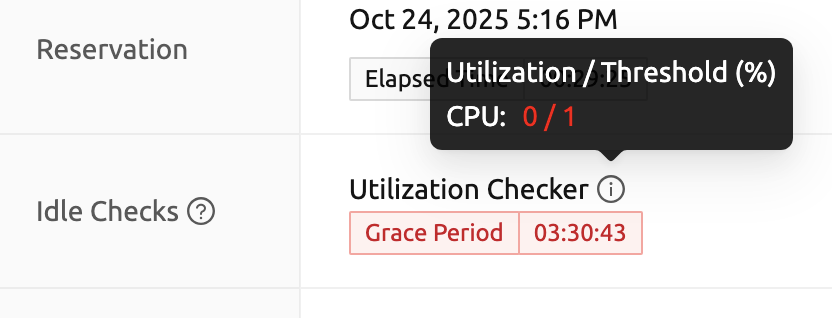

Hovering the mouse over the Utilization Checker will display a tooltip with the utilization and threshold values. The text color changes to yellow and then red as the current utilization approaches the threshold (indicating low resource utilization).

How to add environment variable before creating a session#

To give more convenient workspace for users, Backend.AI supports environment variable setting in session launching. In this feature, users can add any envs such as PATH by filling out variable name and value in environment configuration dialog.

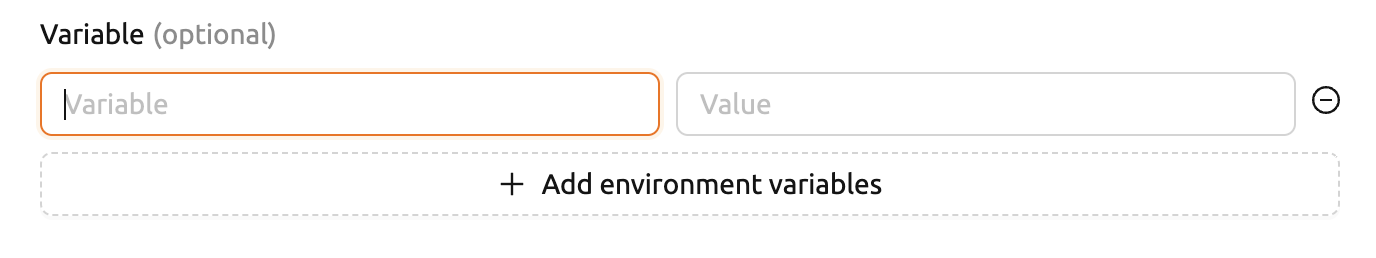

To add environment variable, simply click '+ Add environment variables' button of the Variable. Also, you can remove the variable by clicking '-' button of the row that you want to get rid of.

You can write down variable name and value in the same line of the input fields.

How to add preopen ports before creating a session#

Backend.AI supports preopen ports setting at container startup. When using this feature, there is no need to build separate images when you want to expose the serving port.

To add preopen ports, simply enter multiple values separated by either a comma (,) or a space.

In the forth page of session creation page, users can add, update and delete written preopen ports. To see more detail information, please click 'Help (?)'' button.

Users can put port numbers in between 1024 ~ 65535, to the input fields. Then, press 'Enter'. Users can specify multiple ports, separated by commas (,). Users can check the configured preopen ports in the session app launcher.

Save session commit#

Backend.AI supports "Convert Session to Image" feature from 24.03. Committing a RUNNING session will save the current state of the session as a new image. Click the 'Commit' button (the fourth icon) in the session detail panel to open a dialog displaying the session information. After entering the session name, users can convert the session to a new image. The session name must be 4 to 32 characters long and can only contain alphanumeric letters, hyphens (-), or underscores (_).

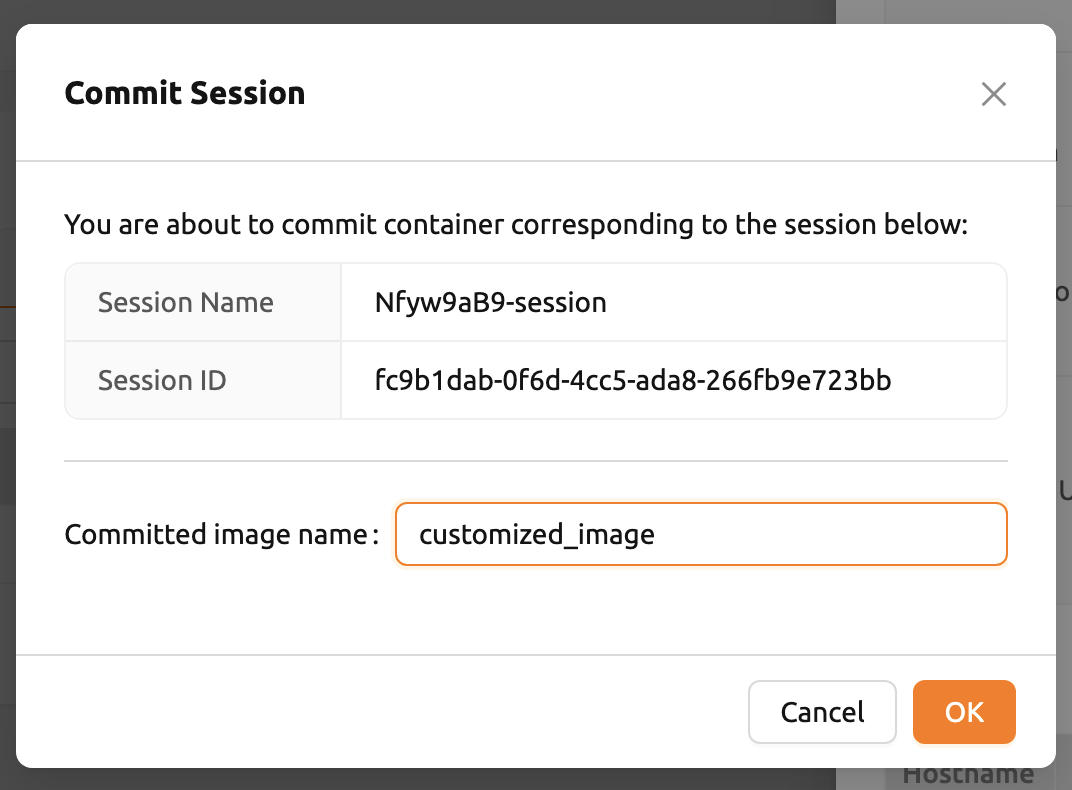

After filling out session name in the input field, click the 'PUSH SESSION TO CUSTOMIZED IMAGE' button. The customized image created in this way can be used in future session creations. However, directories mounted to the container for image commits are considered external resources and are not included in the final image. Remember that /home/work is a mount folder (scratch directory), so it is not included.

Utilizing converted images of ongoing sessions#

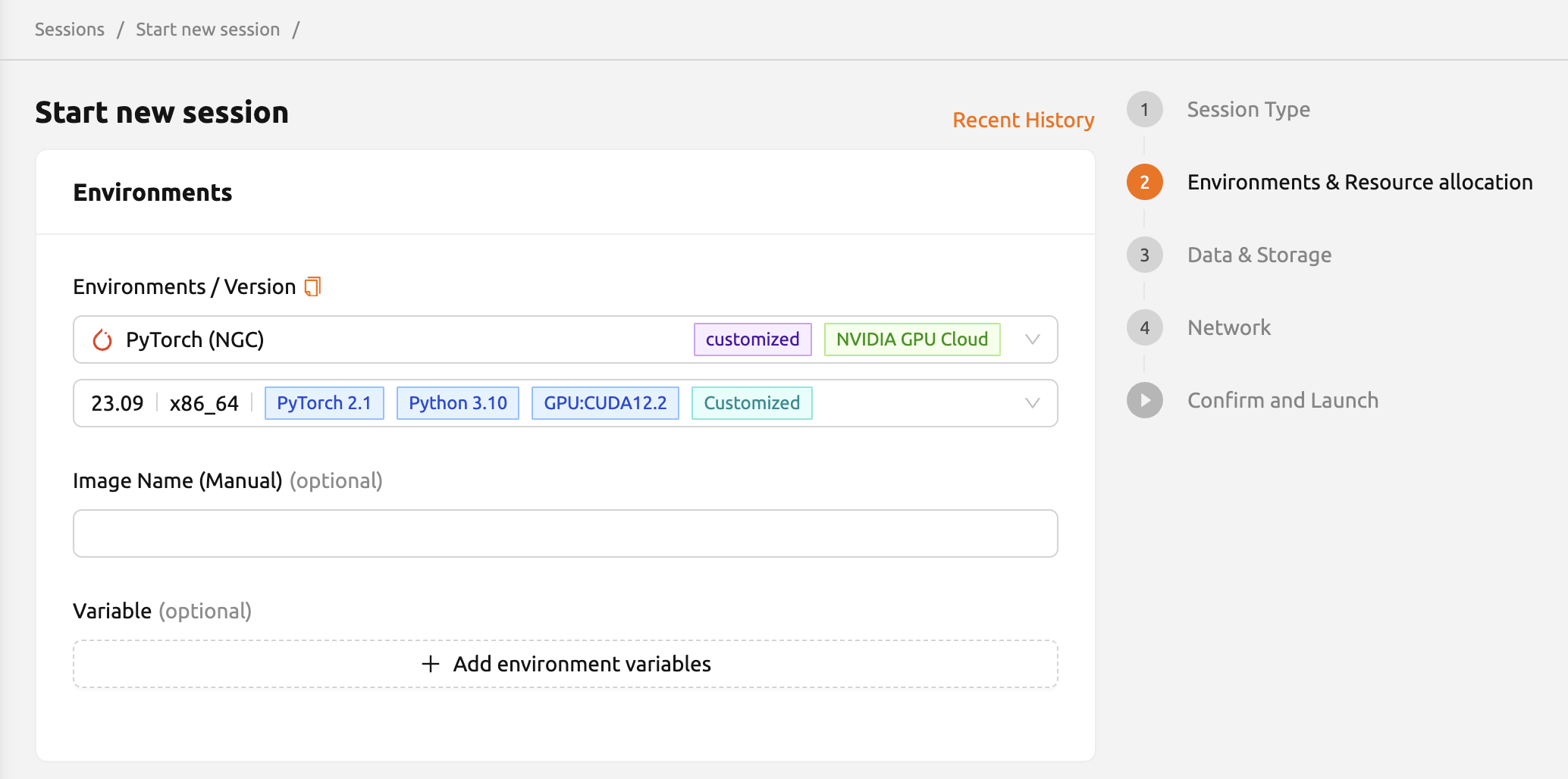

Converting an ongoing session into an image allows users to select this image from the environments in the session launcher when creating a new session. This image is not exposed to other users and is useful for continuing to use the current session state as is. The converted image is tagged with Customized<session name>.

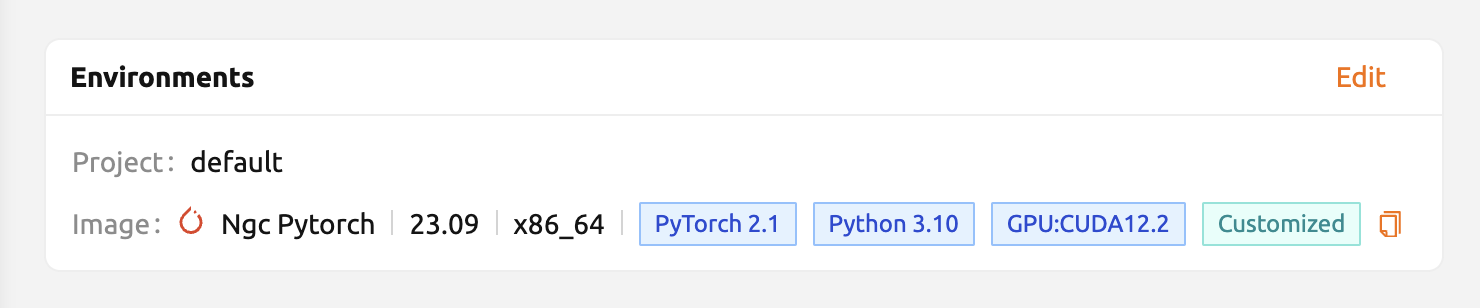

To manually enter the environment name for future session creation, please click the copy icon.

Advanced web terminal usage#

The web-based terminal internally embeds a utility called tmux. tmux is a terminal multiplexer that supports to open multiple shell windows within a single shell, so as to allow multiple programs to run in foreground simultaneously. If users want to take advantage of more powerful tmux features, they can refer to the official tmux documentation and other usage examples on the Internet.

Here we are introducing some simple but useful features.

Copy terminal contents#

tmux offers a number of useful features, but it's a bit confusing for first-time users. In particular, tmux has its own clipboard buffer, so when copying the contents of the terminal, users can suffer from the fact that it can be pasted only within tmux by default. Furthermore, it is difficult to expose user system's clipboard to tmux inside web browser, so the terminal contents cannot be copied and pasted to other programs of user's computer. The so-called Ctrl-C / Ctrl-V is not working with tmux.

If copy and paste of terminal contents is needed to system's clipboard, users can temporarily turn off tmux's mouse support. First, press Ctrl-B key to enter tmux control mode. Then type :set -g mouse off and press Enter (note to type the first colon as well). Users can check what they are typing in the status bar at the bottom of the screen. Then drag the desired text from the terminal with the mouse and press the Ctrl-C or Cmd-C (in Mac) to copy them to the clipboard of the user's computer.

With mouse support turned off, scrolling through the mouse wheel is not supprted, to see the contents of the previous page from the terminal. In this case, users can turn on mouse support. Press Ctrl-B, and this time, type :set -g mouse on. Now scrolling through mouse wheelis available to see the contents of the previous page.

If you remember :set -g mouse off or :set -g mouse on after Ctrl-B, you can use the web terminal more conveniently.

Check the terminal history using keyboard#

There is also a way to copy the terminal contents and check the previous contents of the terminal simultaneously. It is to check the previous contents using the keyboard. Again, click Ctrl-B first, and then press the Page Up and/or Page Down keys. To exit search mode, just press the q key. With this method, users can check the contents of the terminal history even when the mouse support is turned off.

Spawn multiple shells#

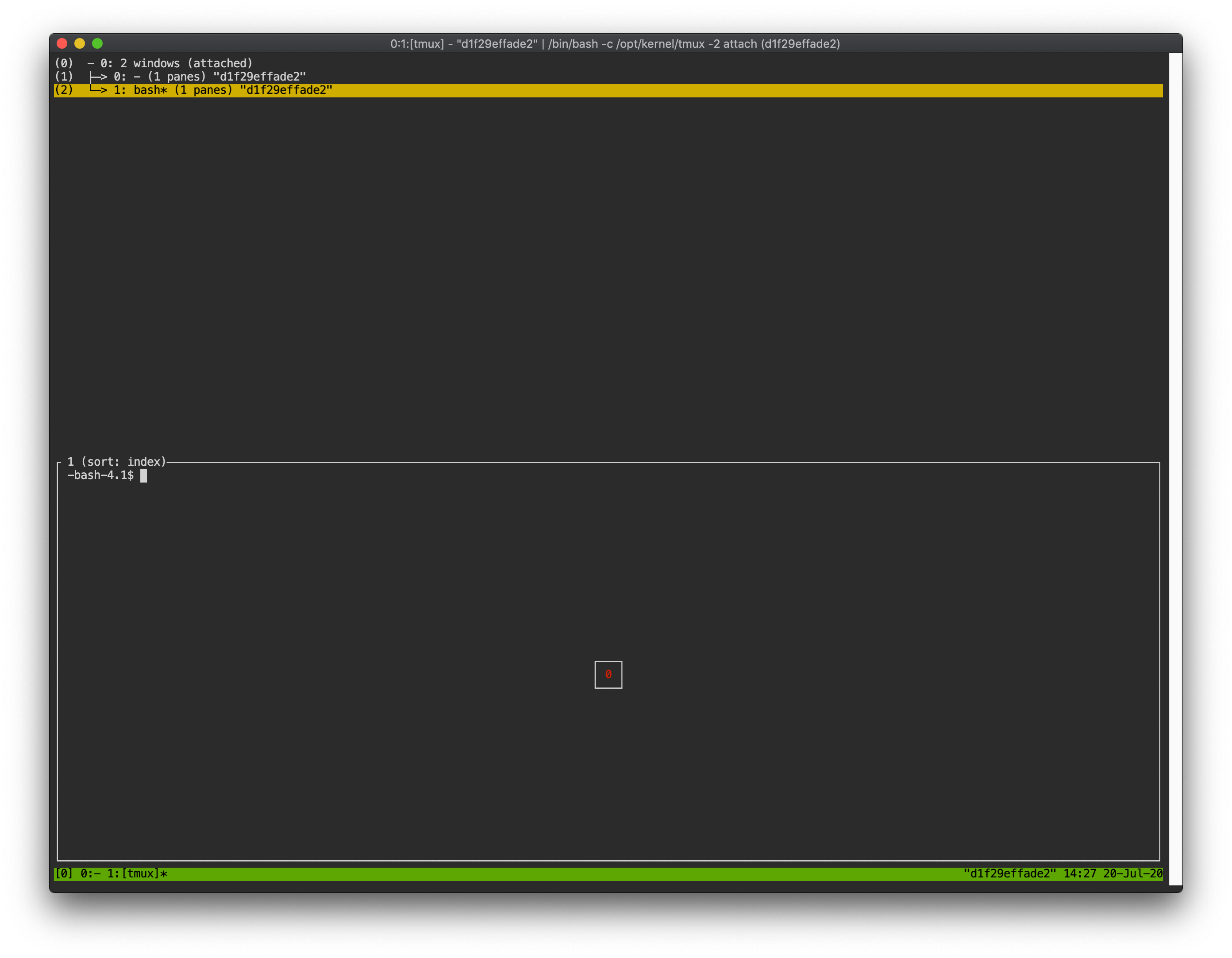

The main advantage of tmux is to launch and use multiple shells in one terminal window. Pressing Ctrl-B key and c. will show the new shell environment. Previous window is not visible at this point, but is not terminated. Press Ctrl-B and w. List of shells currently open on tmux is shown. Shell starting with 0: is the initial shell environment, and the shell starting with 1: is the one just created. Users can move between shells using the up/down keys. Place the cursor on the shell 0: and press the Enter key to select it.

In this way, users can use multiple shell environments within a web terminal. To exit or terminate the current shell, just enter exit command or press Ctrl-B x key and then type y.

In summary:

• Ctrl-B c: create a new tmux shell
• Ctrl-B w: query current tmux shells and move around among them
• exit or Ctrl-B x: terminate the current shell

Combining the above commands allows users to perform various tasks simultaneously on multiple shells.
