Statistics Page#
Allocation History#

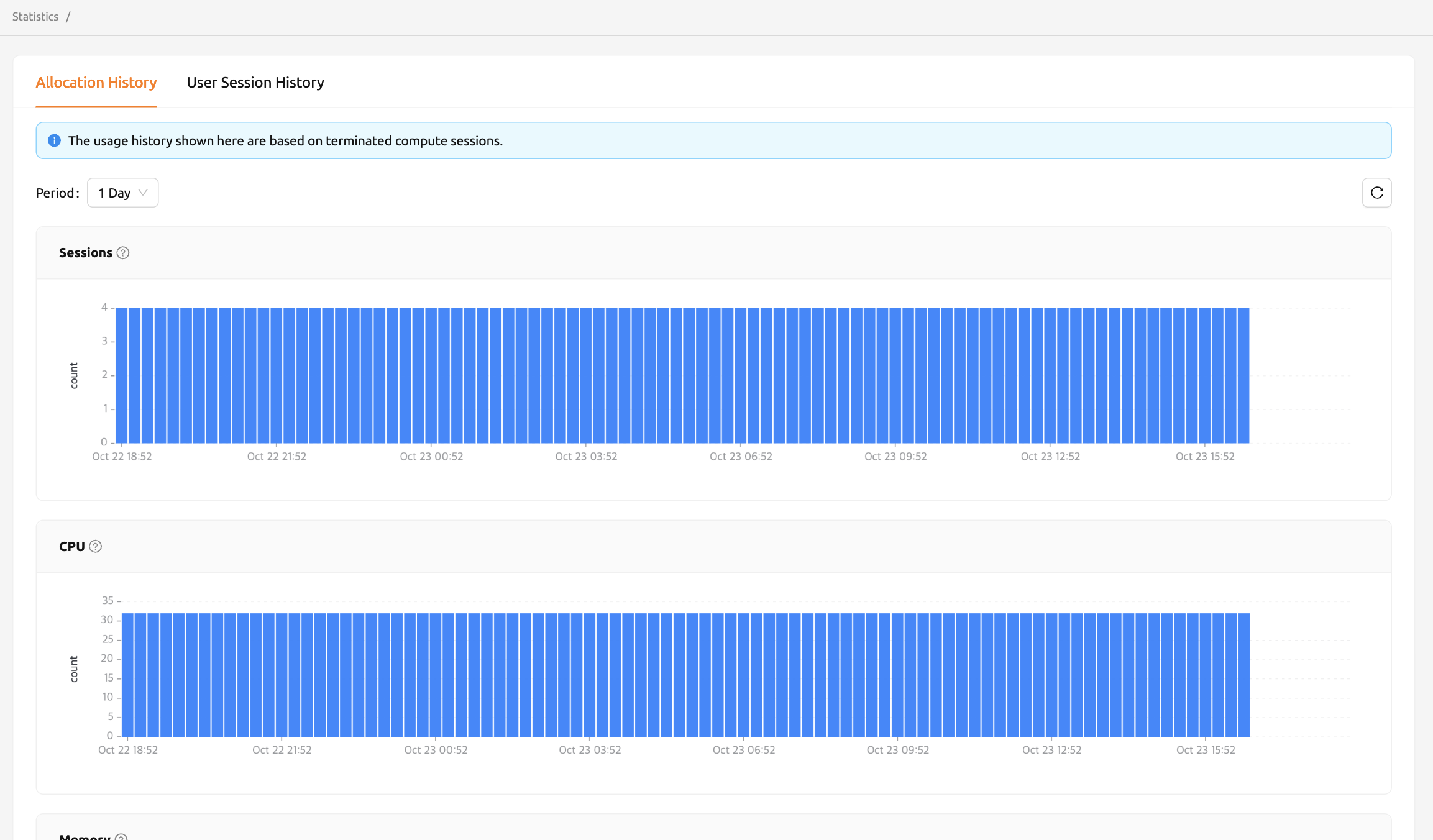

On the Statistics page, under the Allocation History tab, you can check simple statistics related to the use of compute sessions via graphs. You can select the display period using the Period dropdown at the upper left. The available options are 1 Day and 1 Week. You can also click the refresh button next to the dropdown to reload the statistics data. The displayed items are as follows.
- Sessions: The number of compute sessions created.
- CPU: The number of CPU cores allocated to the compute sessions.
- Memory: The amount of memory allocated to the compute sessions.
- GPU: The number of GPU units allocated to the compute sessions. If the fractional GPU (fGPU) feature is enabled, it may not match the physical GPU.
- IO-Read: The amount of data read from the storage.
- IO-Write: The amount of data written to the storage.
The statistics shown here are based on terminated compute sessions. Also, one week statistics may not be shown for users whose account was created less than a week ago.
IO-Read and IO-Write graphs may not appear depending on the backend configuration.
User Session History#
The User Session History tab is only available when the backend supports user metrics. If you do not see this tab, contact your administrator.

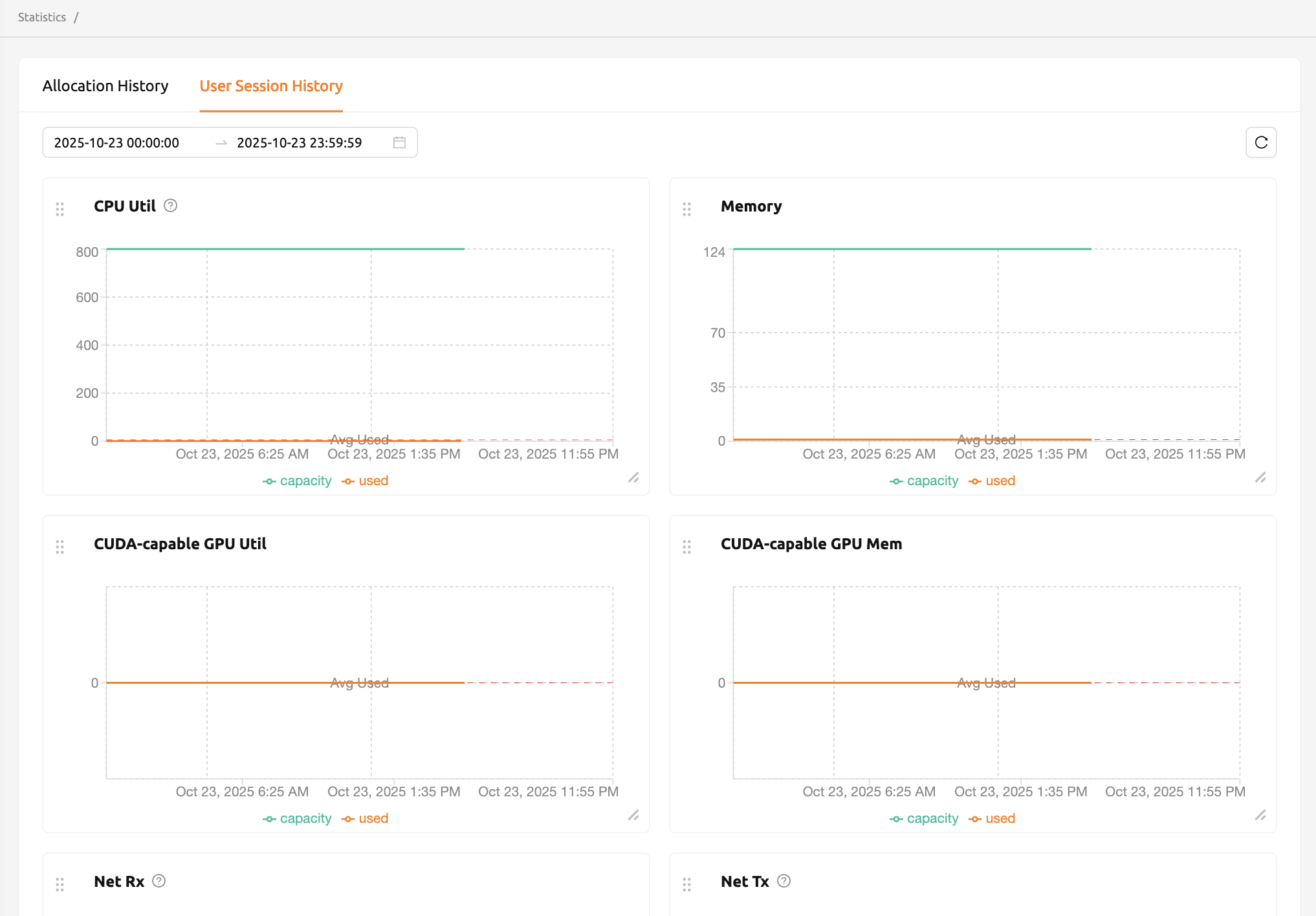

In the User Session History tab of the Statistics page, you can view statistics on various resources used by sessions through graphs. You can select a custom date and time range using the date range picker at the upper left. The date range picker also provides the following preset options for quick selection:
- Today
- Last 1 Hour
- Last 3 Hours
- Last 12 Hours
- Last 1 Day
- Last 7 Days
You can also click the refresh button next to the date range picker to reload the statistics data.
If the selected date range exceeds 30 days, data for some dates may not be available when usage is low. Try again with a shorter date range if you encounter missing data.
The metric graphs displayed are dynamically determined by the backend based on the resources available in your environment. Common metrics include:
- CPU Util: The amount of CPU time used by the sessions.
- Memory: The amount of memory used by the sessions.
- Net Rx: The rate at which the container is receiving network data.
- Net Tx: The rate at which the container is sending network data.
Depending on the available resources, additional metrics such as GPU Util and GPU Mem may also be displayed.
The metric graph cards can be rearranged and resized by dragging, allowing you to customize the layout to your preference.
More detailed statistics are shown in the admin-only Control-Panel.
